BOB-LIFT

Knuckle Boom Marine Cranes

SQZ330T16 Ton Knuckle Boom Marine Crane

Max Lifting Capacity
16000kg
Max Lifting Moment
34.8t·m
Recommended Power
45kW
Hydraulic System Flow
63L/min
Download PDF
Or message us +86 158 5249 9415 info@boblift.com

Confirm your configuration and current availability with our team.

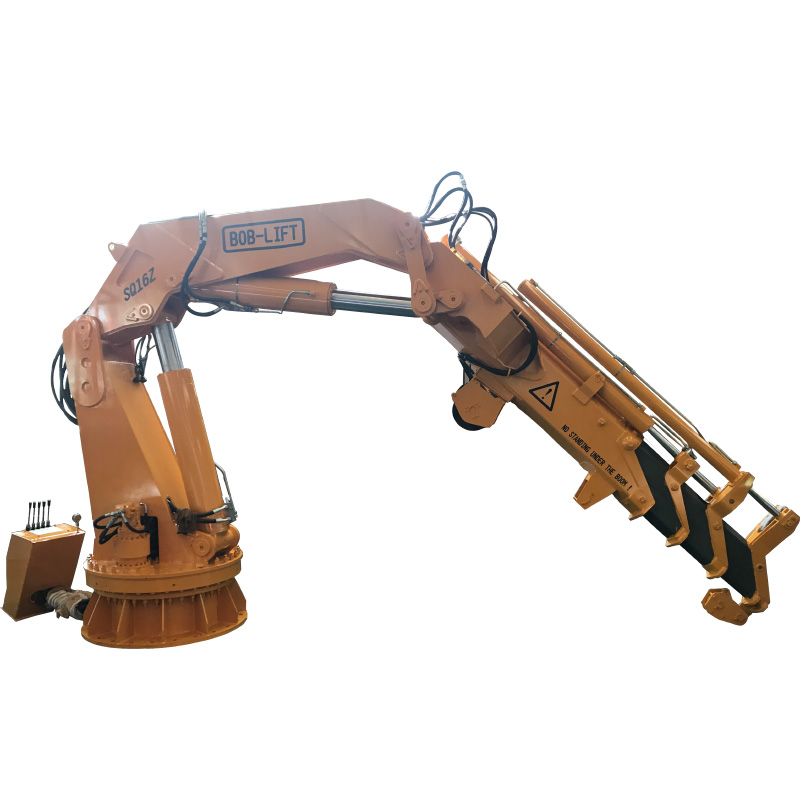

16 Ton Knuckle Boom Marine Crane

Engineering data

SQZ330T Specifications

Former model
SQ16ZA5T

Lifting

Max Lifting Capacity
16000kg
Max Lifting Moment
34.8t·m
Rotation Angle
360° continuous

Hydraulics and power

Recommended Power
45kW
Hydraulic System Flow
63L/min
Hydraulic System Pressure
33MPa
Oil Tank Capacity
200 L

Machine

Self Weight
4500kg

Reach and outriggers

Max. radius
15.9m
Max. height
≈ 18.5 m
Max. boom angle
80°

Figures from the BOB-LIFT brochure for this range. Confirm the final specification with our team before ordering.

Compare all Knuckle Boom Marine Cranes

Dimensions and load chart

SQZ330T dimension drawing and load chart

Select the drawing to view it full size.

How much it lifts at each reach The further the hook is from the crane, the less it can lift: 16,000 kg at 2 m, 1,450 kg at 15.9 m.
Lifts (kg) 16,000 4,220 3,100 2,410 1,970 1,660 1,450
Reach (m) 2 6 7.8 9.8 11.9 13.9 15.9

Reach is measured from the slewing centre to the hook. Figures from the drawing above.

Product details · SQZ330T

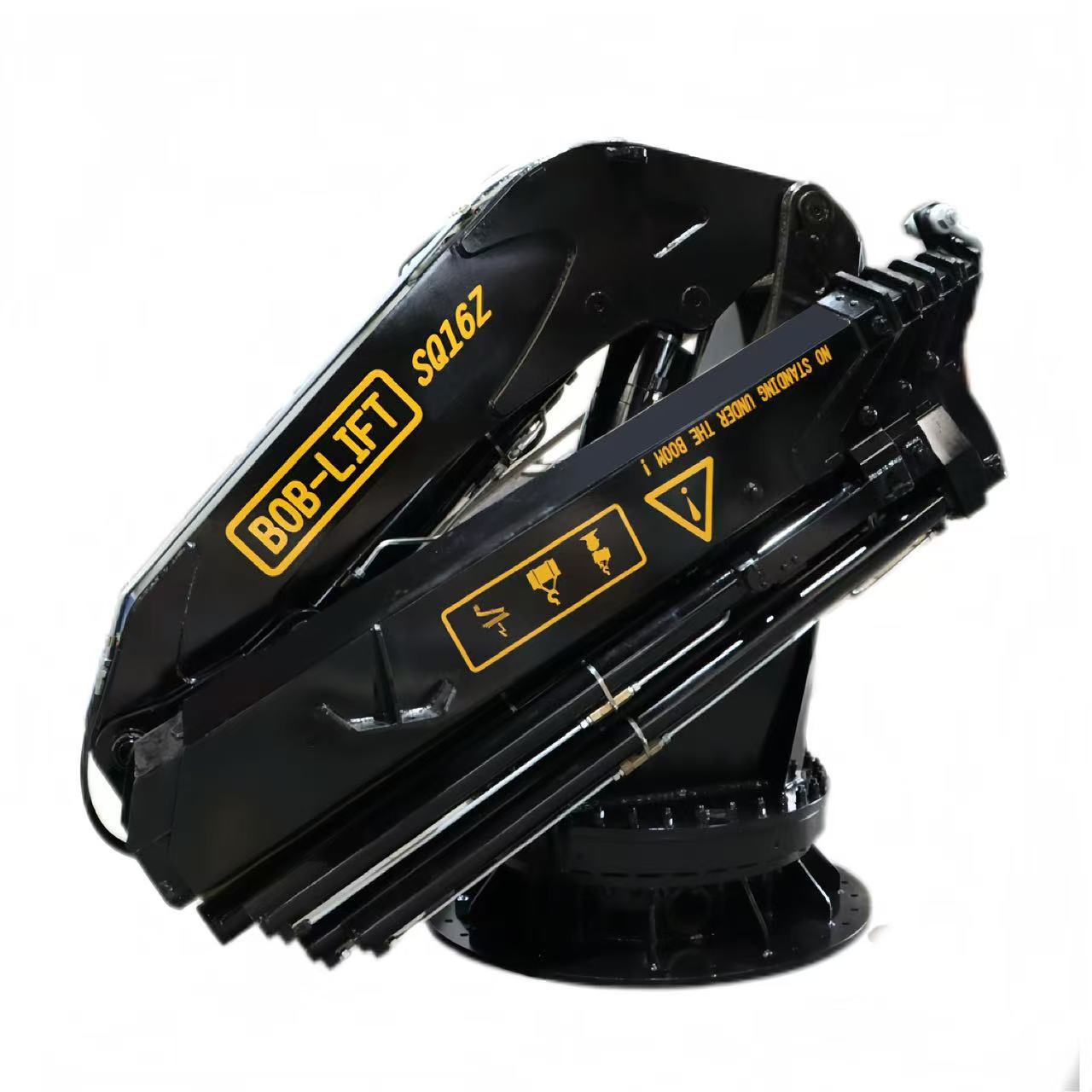

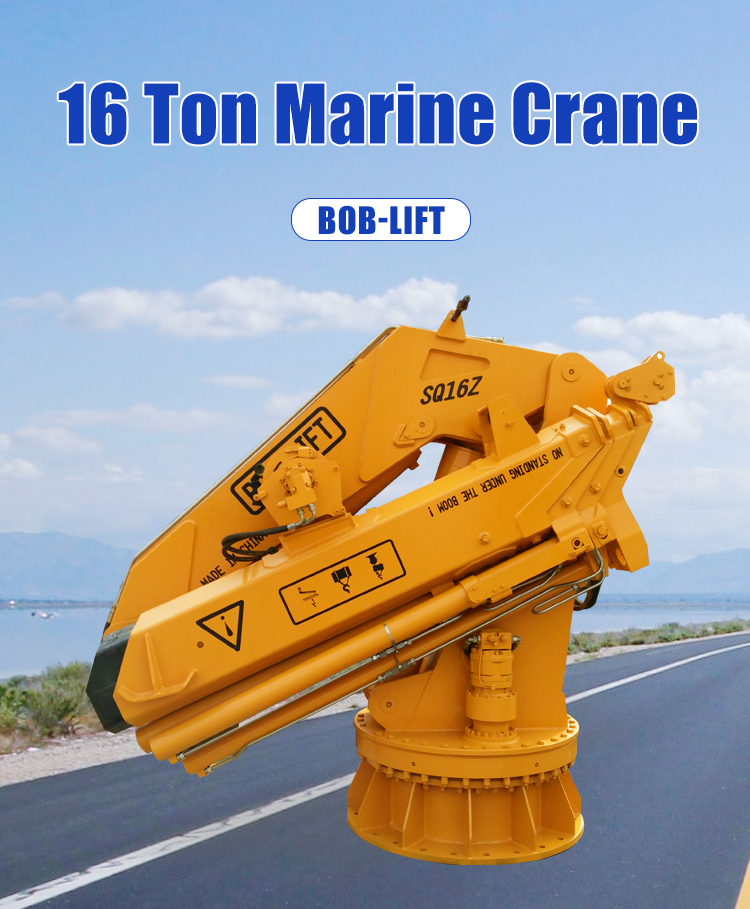

16 Ton Knuckle Boom Marine Crane

16 t knuckle boom marine crane

More videos3

Series video: it shows a crane of the same capacity and boom type, so paint and options can differ from this model.

More videos

The SQZ330T is a 16 t knuckle boom marine crane with a maximum lifting moment of 34.8 t·m. It runs on a recommended 45 kW power supply with 63 L/min of hydraulic flow at 33 MPa, weighs 4500 kg and offers continuous 360° slewing.

Why Go for the 16 Ton Knuckle Boom Marine Crane?

You can use the 16 Ton Knuckle Boom Marine Crane for multiple jobs. The design of this BOB-LIFT equipment incorporates the latest technology and analysis and it is suitable for moving heavy duty cargos. Any purchases made are delivered on time and we offer the best after sales services.

It has a rack cylinder placed at an inclined position, which you can easily fold for better use of space. The crane design allows for a lower center of gravity hence improved operation stability.

Additionally, you have the option to customize the crane so it fits your application requirements. For instance, you can customize additional components for optimum efficiency. With BOB LIFT, a good customer experience is guaranteed; our customer support is outstanding. Another beneficial feature is its wear slider which uses polymer nylon parts.

Knuckle Boom Marine Crane

Product technical advantages

  • High-strength steel structure

    High-strength steel structure

    Compact, light and strong steel structure.

  • Custom installation

    Custom installation

    Pedestal mounting tailored to your deck.

  • Optional attachments

    Optional attachments

    Winch, drill pipe, basket or grapple.

  • Operation modes

    Operation modes

    Manual levers, overhead seat or wireless remote.

  • Dual four-bar linkage

    Dual four-bar linkage

    Reverse-angle reach for flexible work.

  • Dedicated torque limiter Load moment limiter, safety certified.
  • Marine anti-rust treatment Multi-layer anti-rust process for sea duty.

Manufacturing & delivery

From our workshop to your port

  1. Assembly 01

    Assembly

    Slewing base, column and booms are assembled by hand in our Xuzhou workshop.

  2. 02

    Marine test stand

    Mounted on a deck-style stand, the crane runs every boom and slewing motion before release.

  3. Final check 03

    Final check

    Finished cranes are inspected and lined up for dispatch.

  4. Packing 04

    Packing

    Wrapped in film and strapped to protect paint and hydraulics in transit.

  5. Container loading 05

    Container loading

    Loaded into containers at the factory and shipped to your port.

Shipping & warranty

Shipping, warranty and documents

Shipping

Lead time and container loading are confirmed with your quotation.

Warranty and parts

12 months

Send the model, serial number and a photo or video of the issue; our team guides the repair and ships the parts.

Order from 1 unit

Documents

FAQ

Questions about the SQZ330T

Ordering and service

Which configuration should we choose for this model?

Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.

Can the crane be customized for our working conditions?

BOB-LIFT can adjust configuration around lifting radius, site access, operation scenario and destination requirements.

What is the typical delivery time?

Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.

What export documents are provided?

Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.

Do you provide installation and operation training?

Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.

What after-sales support is available?

Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.

Not answered here?

Send us your question and our team replies with answers for your site.

+86 158 5249 9415

Model history

Earlier configurations

Previous models are configurations we no longer build as standard. They can still be built to order.

  • Current model

    SQZ330TThis model

    16 Ton Knuckle Boom Marine Crane

    Capacity
    16 t
    Max lifting moment
    34.8 t·m
    Self weight
    4500 kg
    Recommended Power
    45 kW
    Hydraulic System Flow
    63 L/min
    Hydraulic System Pressure
    33 MPa
    Oil Tank Capacity
    200 L
    Rotation Angle
    360° continuous
    Max. radius
    15.9 m
    Max. height
    ≈ 18.5 m
    Max. boom angle
    80°
  • Previous model SQZ350T

    16 Ton Knuckle Boom Marine Crane SQZ350T

    Capacity
    16 t
    Max lifting moment
    34.8 t·m
    Self weight
    4200 kg
    Recommended Power
    45 kW
    Hydraulic System Flow
    63 L/min
    Hydraulic System Pressure
    33 MPa
    Oil Tank Capacity
    200 L
    Rotation Angle
    360°
    Max. radius
    –
    Max. height
    –
    Max. boom angle
    –
