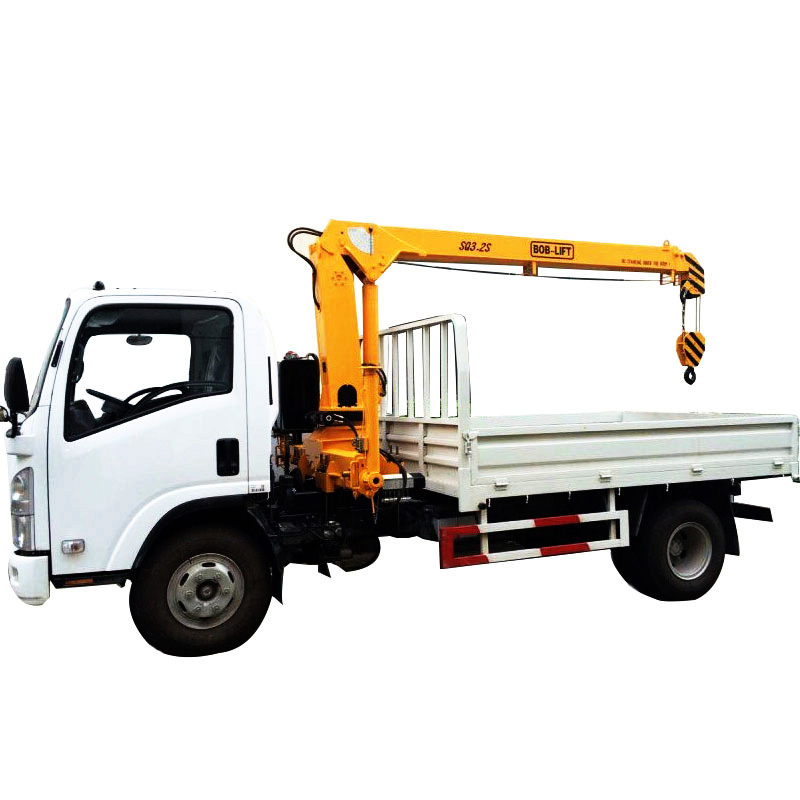

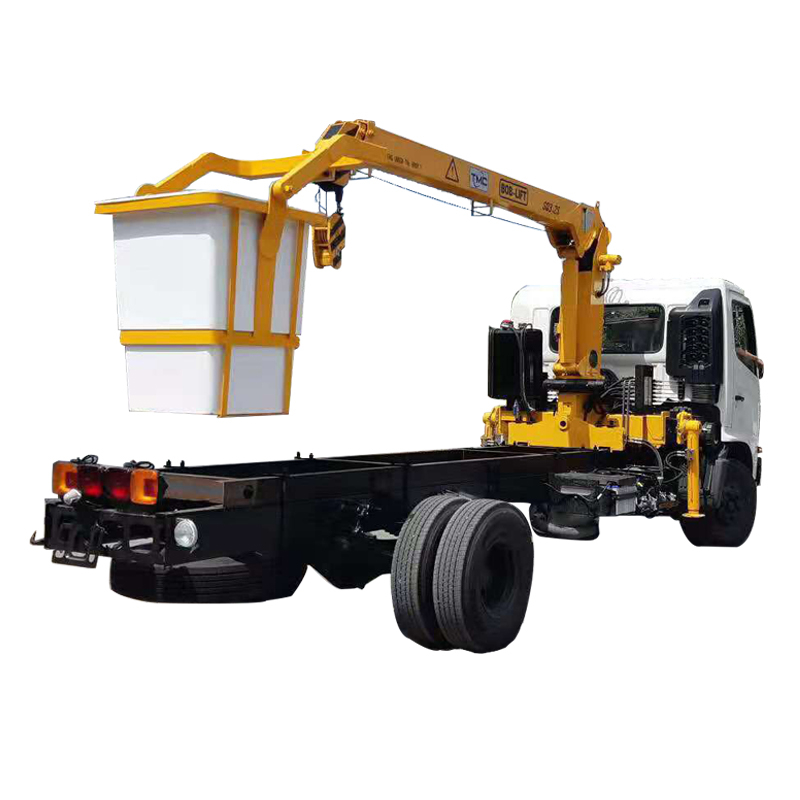

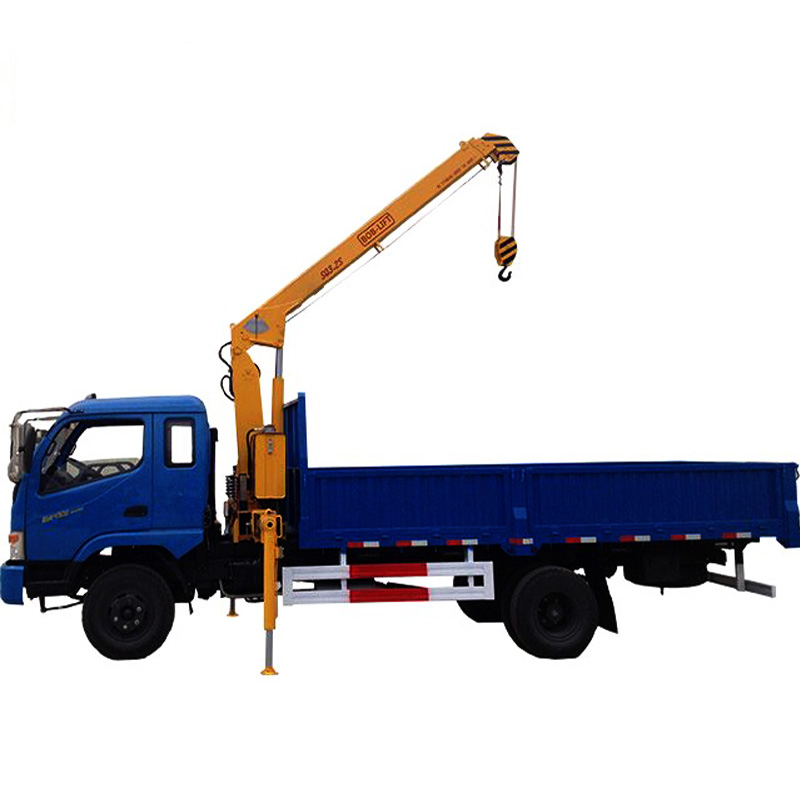

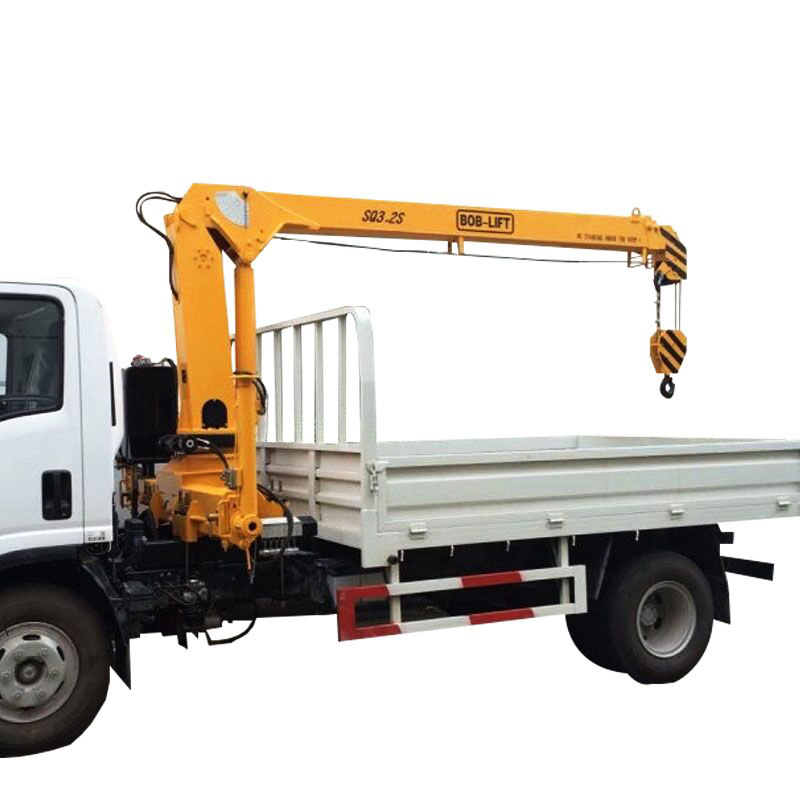

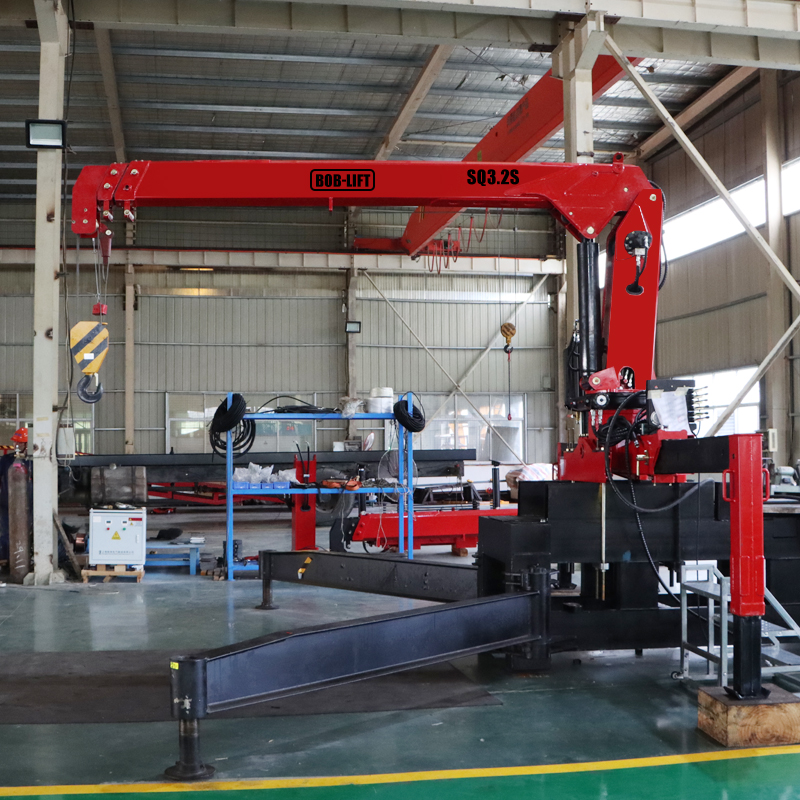

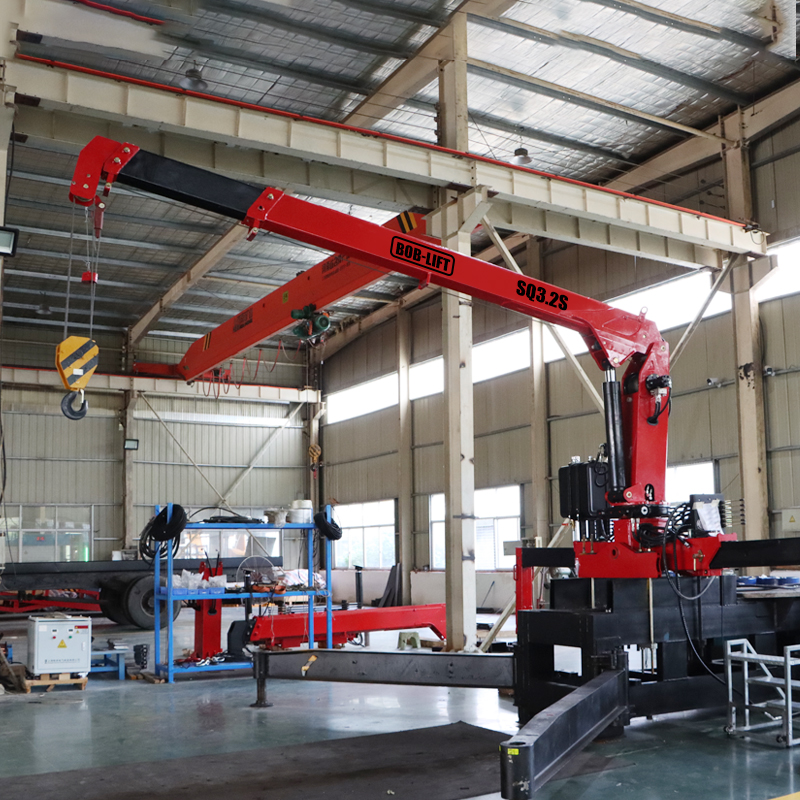

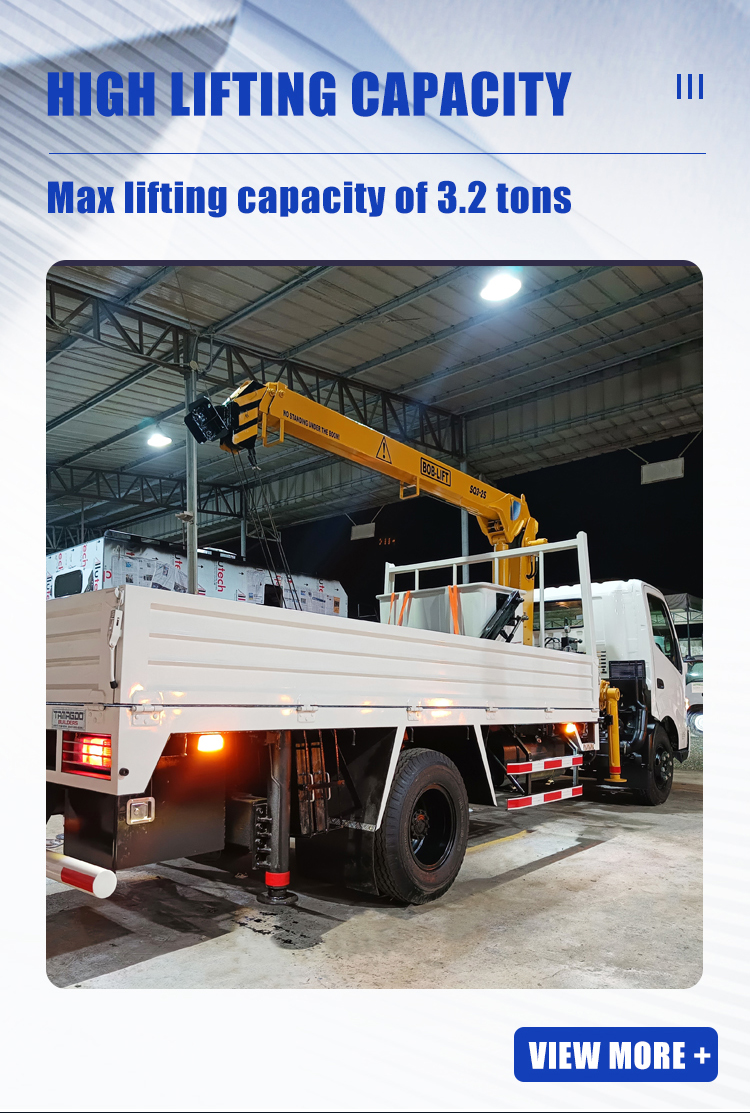

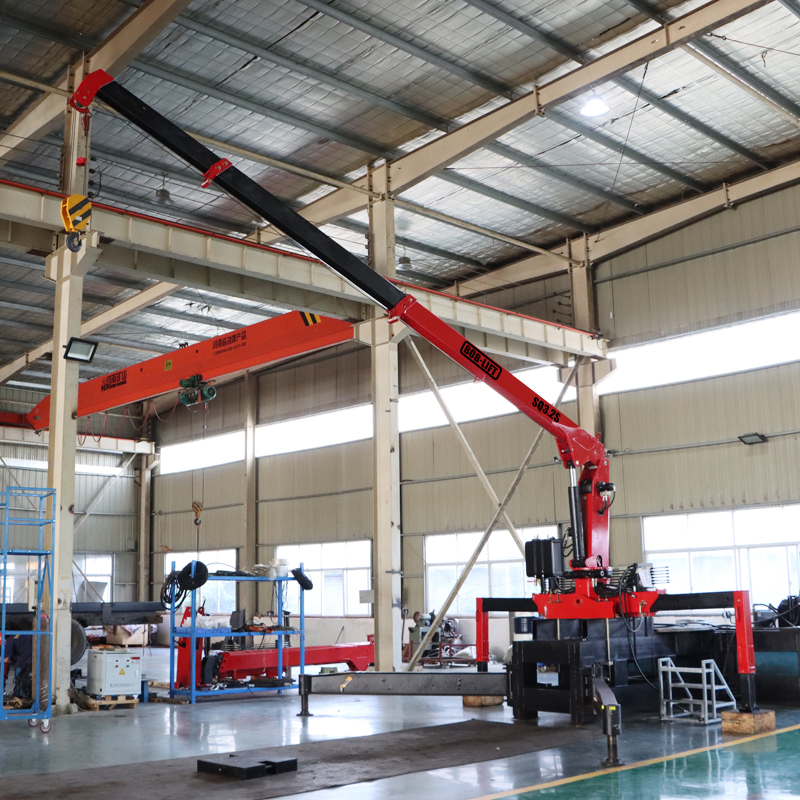

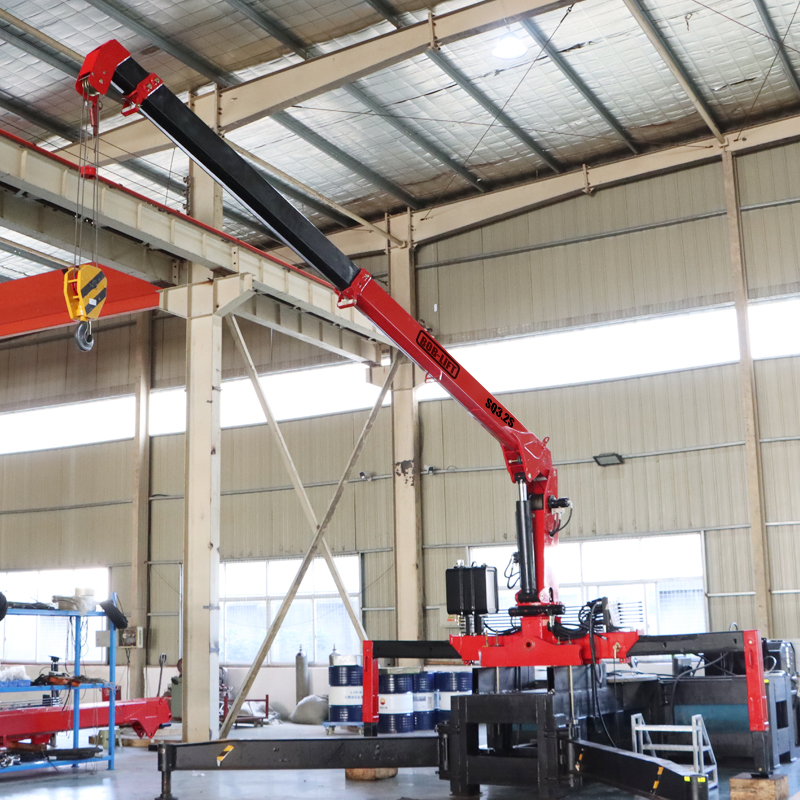

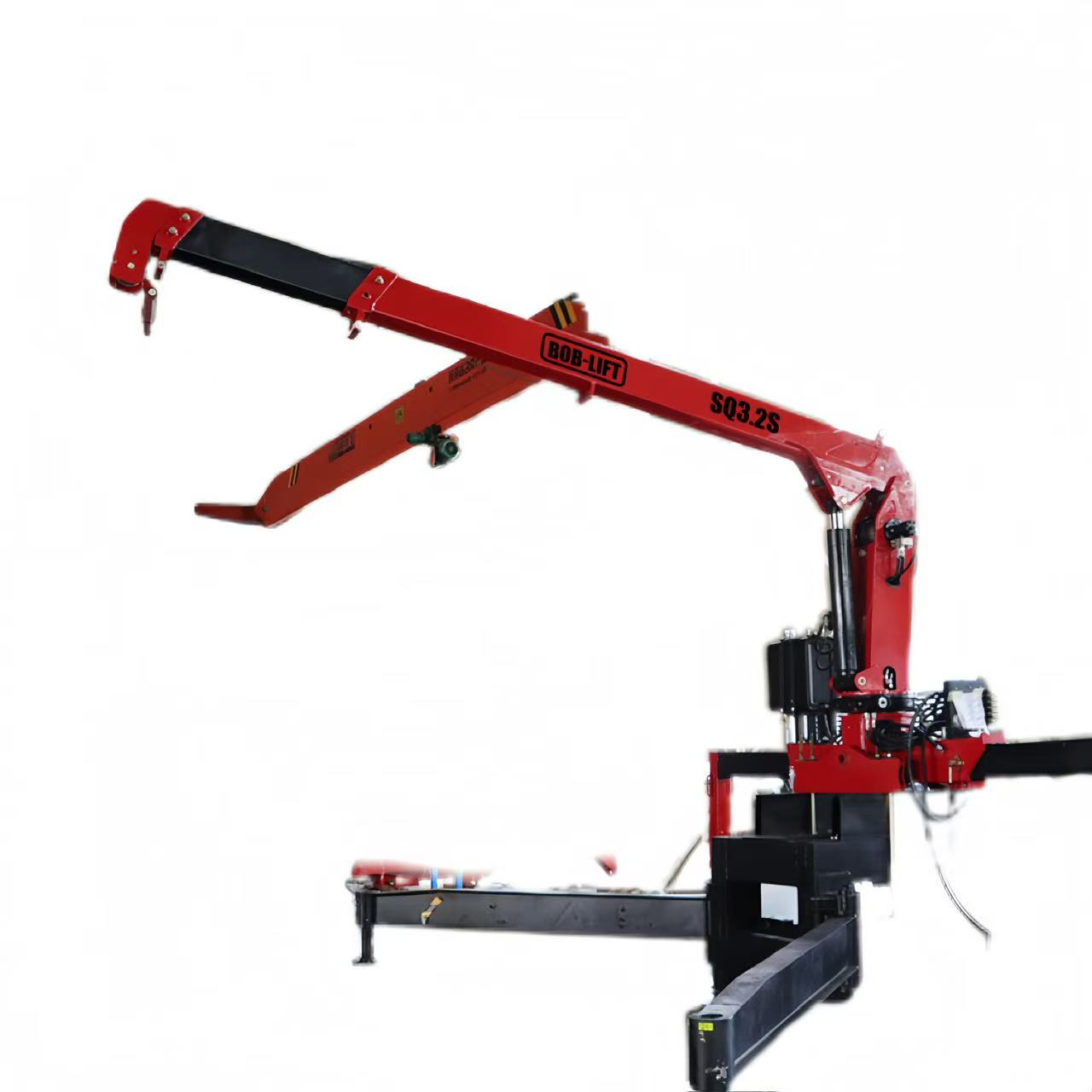

The SQ3.2SA4 is a 3.2 ton telescopic boom truck crane. It lifts 3,200 kg at 2.2 m, 1,900 kg at 3.3 m and 200 kg at its full 10.5 m reach, with a 7 t·m maximum lifting moment and 360° slewing. The crane itself weighs 1,350 kg and needs only 750 mm of space behind the cab.
What the 3.2 ton SQ3.2SA4 is built for
The SQ3.2SA4 has a four-section straight boom that runs out from 3.6 m to 10.8 m. It suits light trucks: at 1,350 kg it takes little of the payload, its outriggers spread only 1,720–3,120 mm, and it stands 2,321 mm high when stowed. Typical work is delivering building materials, bagged goods and pallets, lifting pumps, generators and small machinery, and roadside or utility maintenance. Raised to 75° with the boom fully extended, the hook reaches about 12 m.
Rated capacity always depends on radius. At 5.7 m the SQ3.2SA4 lifts 800 kg and at 8.1 m it lifts 450 kg, so check the weight of your heaviest regular load at the distance you need before you choose a tonnage. If your loads must go over walls or into tight spots, compare it with the 3.2 ton knuckle boom crane.
Load at each radius
| 2.2 m |
3,200 kg |
| 3.3 m |
1,900 kg |
| 5.7 m |
800 kg |
| 8.1 m |
450 kg |
| 10.5 m |
200 kg |
Figures from the SQ3.2SA4 load chart with the boom horizontal. Raising the boom shortens the radius and adds capacity: fully extended to 10.8 m at 75°, it lifts 1,030 kg at 2.7 m. Download the SQ3.2SA4 load chart (PDF)
Mounting it on your truck
The SQ3.2SA4 mounts on a truck chassis behind the cab. These are the figures your body builder needs from the dimension drawing:
| Installation space behind the cab |
750 mm |
| Outrigger span |
1,720–3,120 mm |
| Height of the crane when stowed |
2,321 mm |
| Hydraulic supply |
25 L/min at 20 MPa, about 14 kW |
| Oil tank |
60 L |
Send us your truck make, model and wheelbase, and we check that the chassis and power take-off suit the crane before you order. Download the SQ3.2SA4 dimension drawing (PDF)
All telescopic boom truck cranes · How to choose a telescopic crane
Optional attachments
- Hydraulic gripper opened and closed by its own cylinder to grab and release loads.
- Clamshell bucket for loading, unloading and light digging of waste, chippings and soil.
- Orange peel grab for scrap and bulk material.
- Timber grapple for logs and timber.
- Auger for tree-planting holes, utility poles, foundation piles and soil sampling.
Certification
The SQ3.2S series holds a CE certificate of conformity under the EU Machinery Directive 2006/42/EC.
Choosing the right model
Need more than 3.2 t? The next class up is the SQ4SA4 at 4 t. For lighter loads, the SQ2SA3 at 2 t is the class below.
Before ordering, check that the truck's power take-off can deliver 25 L/min at 20 MPa. We recommend 14 kW of hydraulic power. Its self weight of 1350 kg adds to the load on the truck, so allow for it in the payload.
