BOB-LIFT

Telescopic Boom Marine Cranes

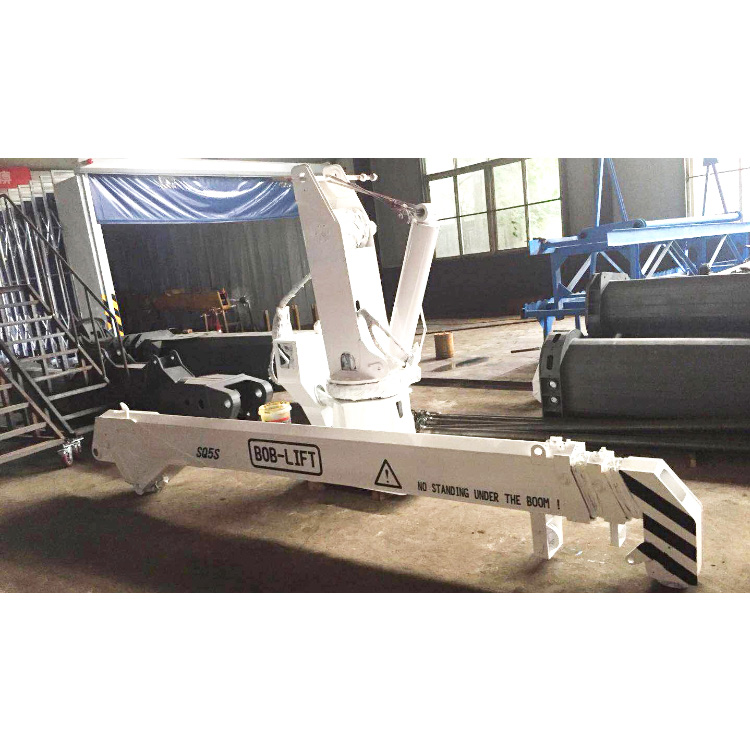

SQ5SA4T5 Ton Telescopic Boom Marine Crane

SQ
Truck mounted crane
5
5 t capacity class
S
Telescopic boom
A4
1 main boom + 3 hydraulic booms
T
Marine version
Max Lifting Capacity
5000kg
Max Lifting Moment
12.5t·m
Recommended Power
18kW
Hydraulic System Flow
32L/min
Download PDF
Or message us +86 158 5249 9415 info@boblift.com

Confirm your configuration and current availability with our team.

5 Ton Telescopic Boom Marine Crane

Engineering data

SQ5SA4T Specifications

Lifting

Max Lifting Capacity
5000kg
Max Lifting Moment
12.5t·m
Rotation Angle
360° continuous

Hydraulics and power

Recommended Power
18kW
Hydraulic System Flow
32L/min
Hydraulic System Pressure
21MPa
Oil Tank Capacity
100 L

Machine

Self Weight
2100kg

Reach and outriggers

Max. radius
11.79m
Max. height
≈ 13.5 m
Max. boom angle
75°

Figures from the BOB-LIFT brochure for this range. Confirm the final specification with our team before ordering.

Compare all Telescopic Boom Marine Cranes

Dimensions and load chart

SQ5SA4T dimension drawing and load chart

Select the drawing to view it full size.

How much it lifts at each reach The further the hook is from the crane, the less it can lift: 5,000 kg at 2.5 m, 600 kg at 11.79 m.
Lifts (kg) 5,000 3,000 1,650 900 600
Reach (m) 2.5 3.99 6.59 9.19 11.79

Reach is measured from the slewing centre to the hook. Figures from the drawing above.

Product details · SQ5SA4T

5 Ton Telescopic Boom Marine Crane

The SQ5SA4T is one of 10 models in our Telescopic Boom Marine Cranes range, which runs from 2 t to 20 t.

The SQ5SA4T is a 5 t telescopic boom marine crane with a maximum lifting moment of 12.5 t·m. It runs on a recommended 18 kW power supply with 32 L/min of hydraulic flow at 21 MPa, weighs 2100 kg and offers continuous 360° slewing.

Why Purchase the 5 Ton Telescopic Boom Marine Crane?

The 5 Ton Telescopic Boom Marine Crane has a compact design that makes it more reliable and durable. The crame is light and has a good weight to load ratio which makes it efficient for lightweight tasks.

The 5 Ton Telescopic Boom Marine Crane has a sturdy inclined rack cylinder with a folding boom designed to save space and make the overall structure more compact. The crane's structure also lowers the entire machine and vehicle’s center of gravity, making it more stable and less likely to cause an accident.

Also, operators can adjust the crane’s parameters to suit their needs and even attach new products and accessories to solve new challenges. Lastly, purchasing this crane guarantees you great after-sales service and quick delivery of accessories.

  • Capacity class

    5 t

    Max lifting moment 12.5 t·m

  • Telescopic boom sections

    4

    1 main boom + 3 hydraulic booms

  • Hydraulic flow

    32 L/min

    21 MPa · 18 kW recommended

Choosing the right model

Need more than 5 t? The next class up is the SQ6.3SA4T at 6.3 t. For lighter loads, the SQ4SA3T at 4 t is the class below.

Before ordering, check that the vessel's hydraulic supply can deliver 32 L/min at 21 MPa. We recommend 18 kW of hydraulic power.

Telescopic Boom Marine Crane

Product technical advantages

  • High-strength steel structure

    High-strength steel structure

    Compact, light and strong steel structure.

  • Custom installation

    Custom installation

    Pedestal mounting tailored to your deck.

  • Optional attachments

    Optional attachments

    Winch, drill pipe, basket or grapple.

  • Operation modes

    Operation modes

    Manual levers, overhead seat or wireless remote.

  • Dedicated torque limiter Load moment limiter, safety certified.
  • Marine anti-rust treatment Multi-layer anti-rust process for sea duty.

Manufacturing & delivery

From our workshop to your port

  1. Boom sections 01

    Boom sections

    Telescopic boom sections are finished and fitted before assembly.

  2. Assembly 02

    Assembly

    Columns, winches and control valves are assembled in our Xuzhou workshop.

  3. 03

    Marine test stand

    Mounted on a deck-style stand, the crane runs every boom and slewing motion before release.

  4. Packing 04

    Packing

    Wrapped in film and strapped to protect paint and hydraulics in transit.

  5. Container loading 05

    Container loading

    Loaded into containers at the factory and shipped to your port.

Shipping & warranty

Shipping, warranty and documents

Shipping

Lead time and container loading are confirmed with your quotation.

Warranty and parts

12 months

Send the model, serial number and a photo or video of the issue; our team guides the repair and ships the parts.

Order from 1 unit

Documents

FAQ

Questions about the SQ5SA4T

About the SQ5SA4T

What hydraulic supply does the SQ5SA4T need?

32 L/min at 21 MPa. We recommend 18 kW of hydraulic power. Send us the vessel's hydraulic data and we confirm the match when we quote.

What warranty and minimum order apply to the SQ5SA4T?

The SQ5SA4T carries a 12-month warranty, and you can order from 1 unit.

Not answered here?

Send us your question and our team replies with answers for your site.

+86 158 5249 9415

Ordering and service

Which configuration should we choose for this model?

Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.

Can the crane be customized for our working conditions?

BOB-LIFT can adjust configuration around lifting radius, site access, operation scenario and destination requirements.

What is the typical delivery time?

Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.

What export documents are provided?

Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.

Do you provide installation and operation training?

Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.

What after-sales support is available?

Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.

Model history

Earlier configurations

Previous models are configurations we no longer build as standard. They can still be built to order.

  • Current model

    SQ5SA4TThis model

    5 Ton Telescopic Boom Marine Crane

    Capacity
    5 t
    Max lifting moment
    12.5 t·m
    Self weight
    2100 kg
    Boom sections
    4
    Recommended Power
    18 kW
    Hydraulic System Flow
    32 L/min
    Hydraulic System Pressure
    21 MPa
    Oil Tank Capacity
    100 L
    Rotation Angle
    360° continuous
    Max. radius
    11.79 m
    Max. height
    ≈ 13.5 m
    Max. boom angle
    75°
  • Previous model SQ5SA3T

    5 Ton Telescopic Boom Marine Crane SQ5SA3T

    Capacity
    5 t
    Max lifting moment
    12.5 t·m
    Self weight
    1850 kg
    Boom sections
    3
    Recommended Power
    18 kW
    Hydraulic System Flow
    32 L/min
    Hydraulic System Pressure
    20 MPa
    Oil Tank Capacity
    100 L
    Rotation Angle
    360°
    Max. radius
    –
    Max. height
    –
    Max. boom angle
    –
