Engineering data
BLS3.0T Specifications
Lifting
- Max Lifting Capacity
- 2950kg
- Max Working Radius
- 8.46m
- Max Lifting Height (from ground)
- 9m
- Lifting Angle
- 0–70°
- Rotation Angle
- 360° continuous
Machine
- Dimensions (L × W × H)
- 2850 × 850 × 1600 mm
- Vehicle Weight
- 2200kg
Reach and outriggers
- Max. radius
- 8.46m
- Max. height
- ≈ 9.8 m
- Max. boom angle
- 70°
Figures from the BOB-LIFT brochure for this range. Confirm the final specification with our team before ordering.

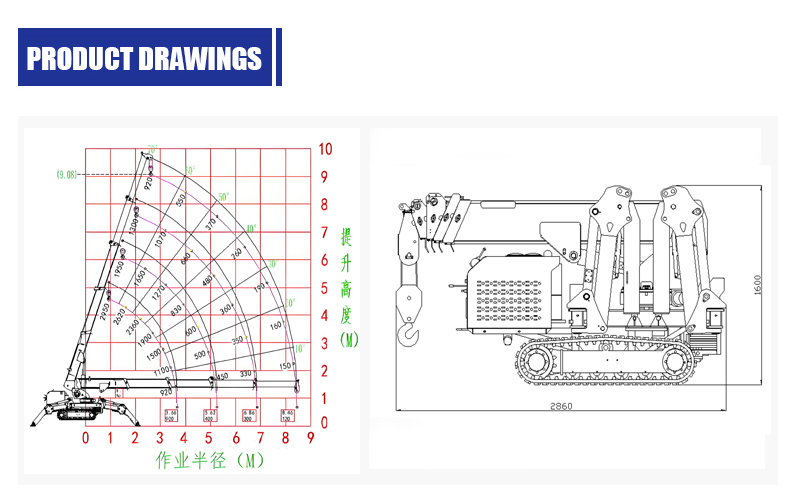

Compare all Spider CranesDimensions and load chart
Select the drawing to view it full size.
Reach is measured from the slewing centre to the hook. Figures from the drawing above.
