CC852.3 Ton Forklift Fly Jib Crane

CC: Forklift fly jib crane
85: Maximum lifting height class

Max Lifting Capacity: 2300kg
Max Lifting Moment: 50kN·m
Max Working Range: 5400mm
Rated Working Pressure: 20MPa

See all 3 Ton Cranes

Download PDF14.4 MB

Or message us +86 158 5249 9415 info@boblift.com

Engineering data

CC85 Specifications

Lifting

Max Lifting Capacity: 2300kg
Max Lifting Moment: 50kN·m
Max Working Range: 5400mm
Boom Sections: 4 × 1.9 m (2 hydraulic + 1 manual extension)
Max Lifting Height: 8400 mm (3 m mast) / 9900 mm (4.5 m mast)
Matching Forklifts: 3 t / 3.5 t

Hydraulics and power

Rated Working Pressure: 20MPa

Machine

Self Weight: 560kg

Reach and outriggers

Max. radius: 5.4m
Max. height: ≈ 7.5 m

Figures from the BOB-LIFT brochure for this range. Confirm the final specification with our team before ordering.

Compare all Forklift Fly Jib Cranes

Dimensions and load chart

Select the drawing to view it full size.

How much it lifts at each reach The further the hook is from the crane, the less it can lift: 2,300 kg at 1.7 m, 400 kg at 5.4 m.

Lifts (kg)	2,300	1,900	1,300	700	400
Reach (m)	1.7	2.1	3.2	4.3	5.4

Reach is measured from the slewing centre to the hook. Figures from the drawing above.

Product details · CC85

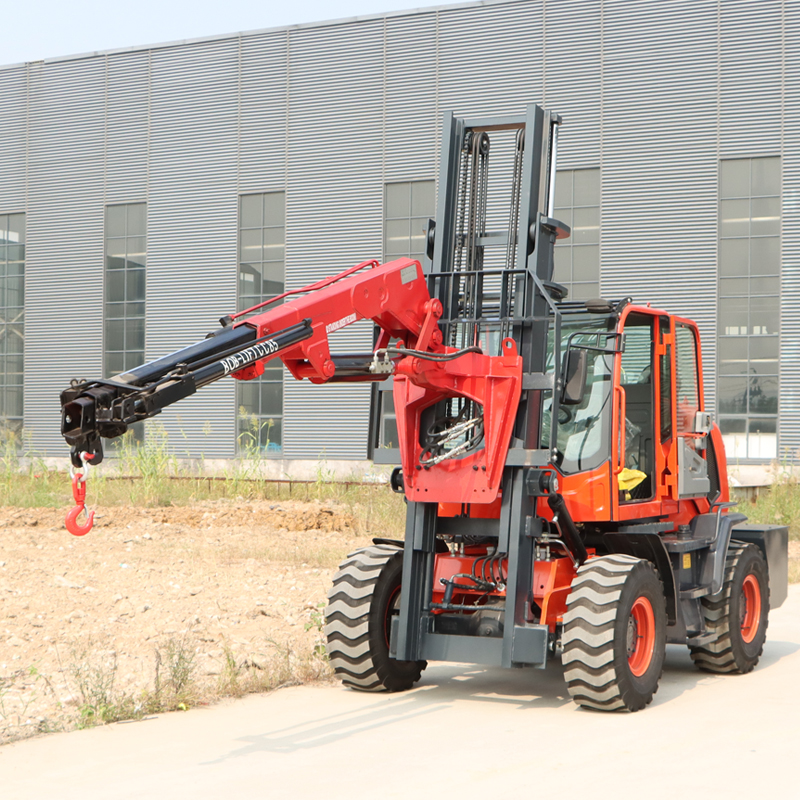

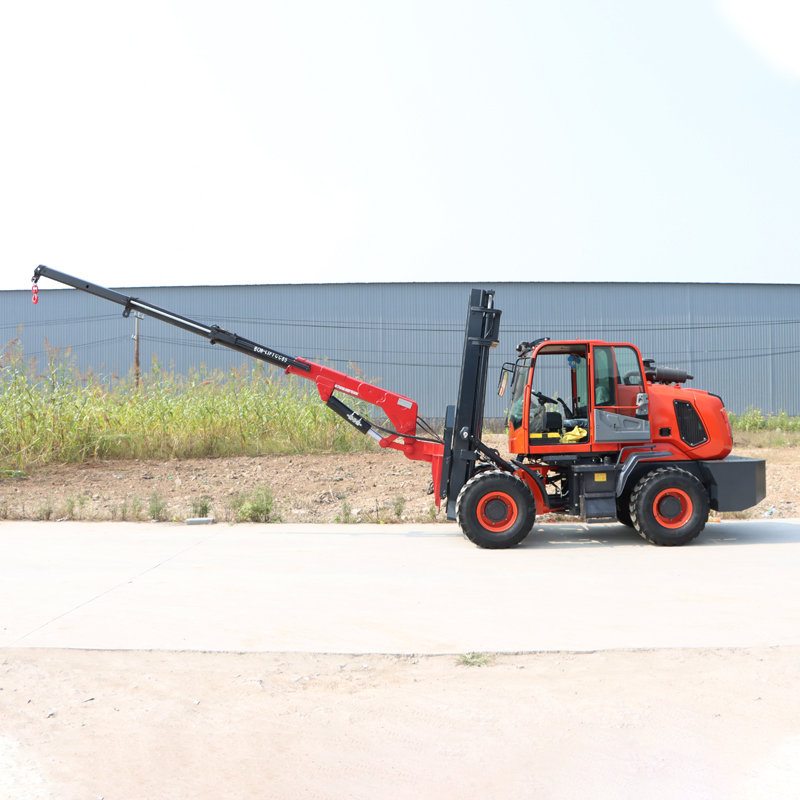

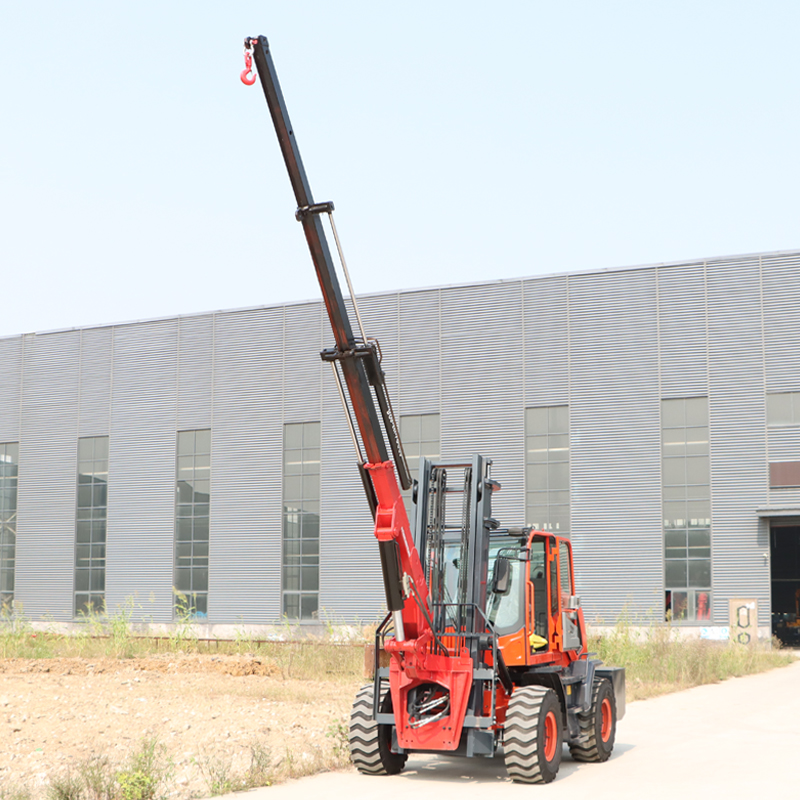

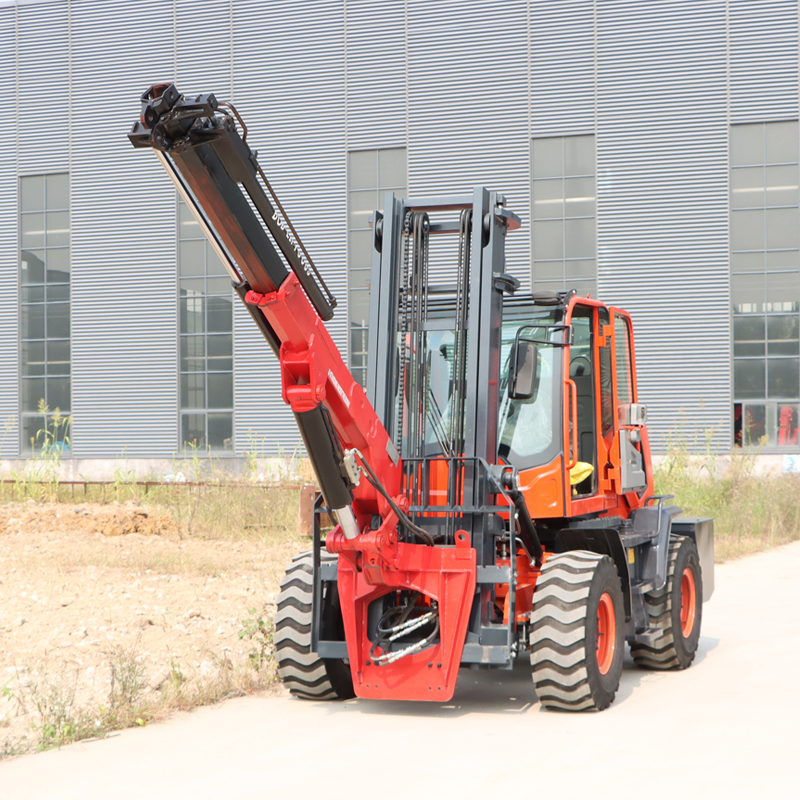

2.3 Ton Forklift Fly Jib Crane

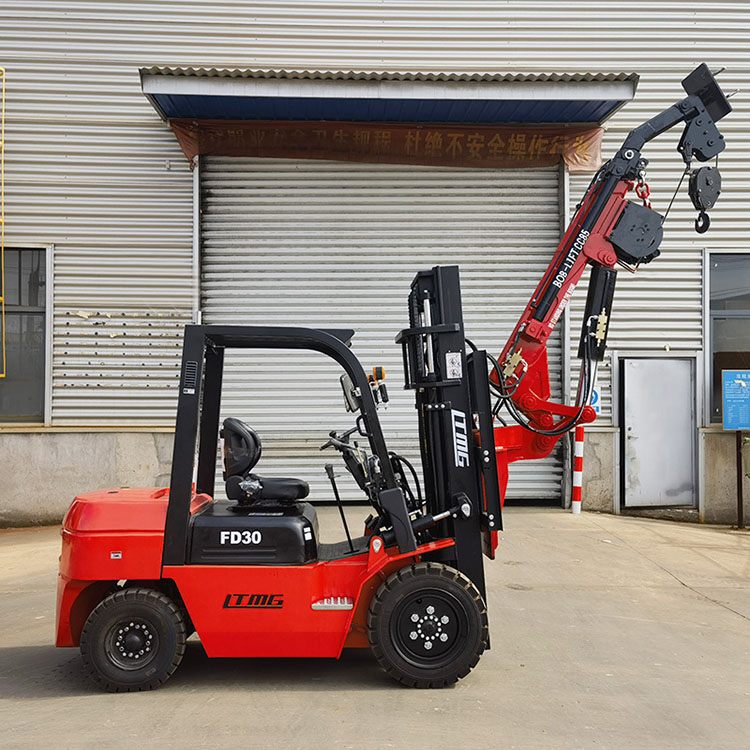

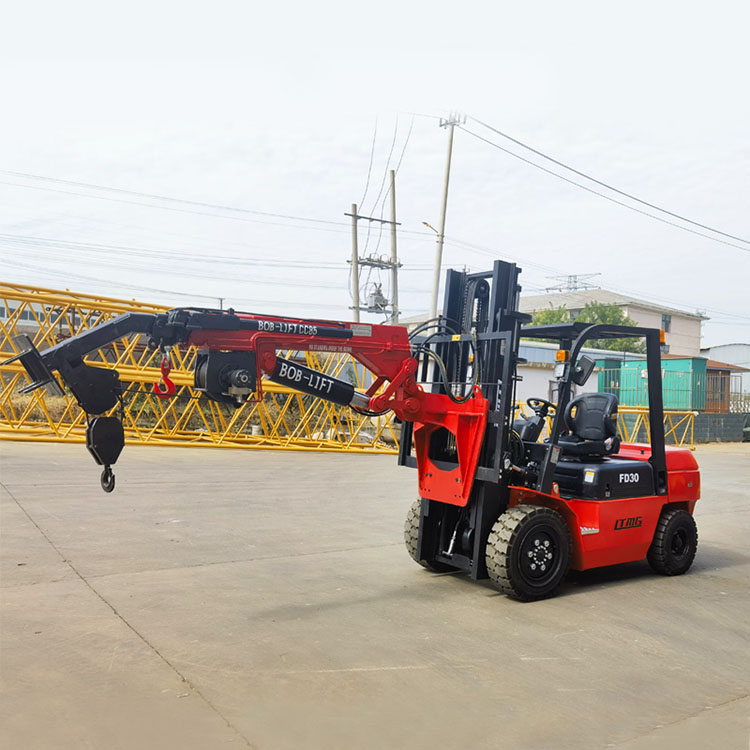

The CC85 is a forklift fly jib crane rated at 2.3 t, with a working range of 5.4 m and a lifting height of 8.4 m with a 3 m mast or 9.9 m with a 4.5 m mast. It weighs 560 kg and is matched to 3 t / 3.5 t forklifts.

Why Select the 2.3 Ton Forklift Fly Jib Crane?

The 2.3 Ton Forklift Fly Jib Crane is a comfortable piece of machinery perfect for light tasks in restricted spaces. The crane has several features that make it perfect for various construction projects, including flexibility and a telescopic boom.

The 2.3 ton Forklift Fly Jib Crane is designed with a folding and telescopic boom to enhance its efficiency compared to cranes. This particular crane is specifically crafted for tasks, in confined spaces offering flexibility when used indoors or in narrow areas. Its versatility allows it to be utilized in operations in under pits.

One of the advantages of the 2.3 ton Forklift Fly Jib Crane is its ability to effortlessly lift and transport irregular objects to higher floors. Moreover, it features a telescopic boom that extends its reach and allows for increased lifting height. Additionally, this crane has a turning radius. Provides comfortable riding conditions for operators.

Certification

The CC85 series holds a CE certificate of conformity under the EU Machinery Directive 2006/42/EC.
