CC1253.5 Ton Forklift Fly Jib Crane

CC: Forklift fly jib crane
125: Maximum lifting height class

Max Lifting Capacity: 3500kg
Max Lifting Moment: 60kN·m
Max Working Range: 8000mm
Rated Working Pressure: 20MPa

See all 4 Ton Cranes

Download PDF14.4 MB

Or message us +86 158 5249 9415 info@boblift.com

Engineering data

CC125 Specifications

Lifting

Max Lifting Capacity: 3500kg
Max Lifting Moment: 60kN·m
Max Working Range: 8000mm
Boom Sections: 5 × 1.9 m (3 hydraulic + 1 manual extension)
Max Lifting Height: 11000 mm (3 m mast) / 12500 mm (4.5 m mast)
Matching Forklifts: 4 t / 6 t

Hydraulics and power

Rated Working Pressure: 20MPa

Machine

Self Weight: 850kg

Reach and outriggers

Max. radius: 8m
Max. height: ≈ 11 m

Figures from the BOB-LIFT brochure for this range. Confirm the final specification with our team before ordering.

Compare all Forklift Fly Jib Cranes

Dimensions and load chart

Select the drawing to view it full size.

How much it lifts at each reach The further the hook is from the crane, the less it can lift: 3,500 kg at 2.1 m, 350 kg at 8 m.

Lifts (kg)	3,500	3,000	2,200	1,300	800	350
Reach (m)	2.1	2.4	3.8	5.2	6.6	8

Reach is measured from the slewing centre to the hook. Figures from the drawing above.

Product details · CC125

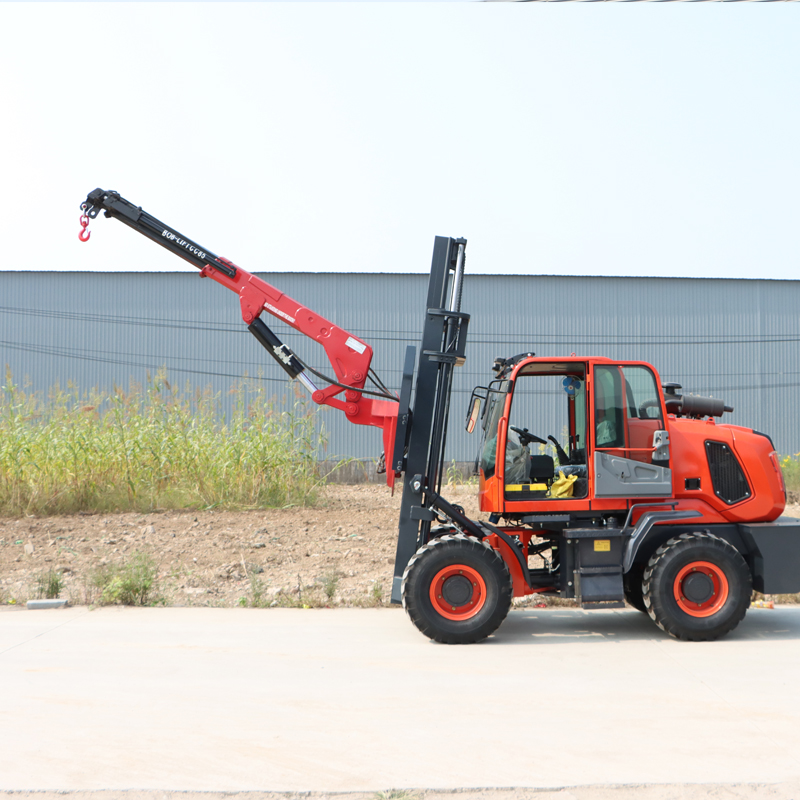

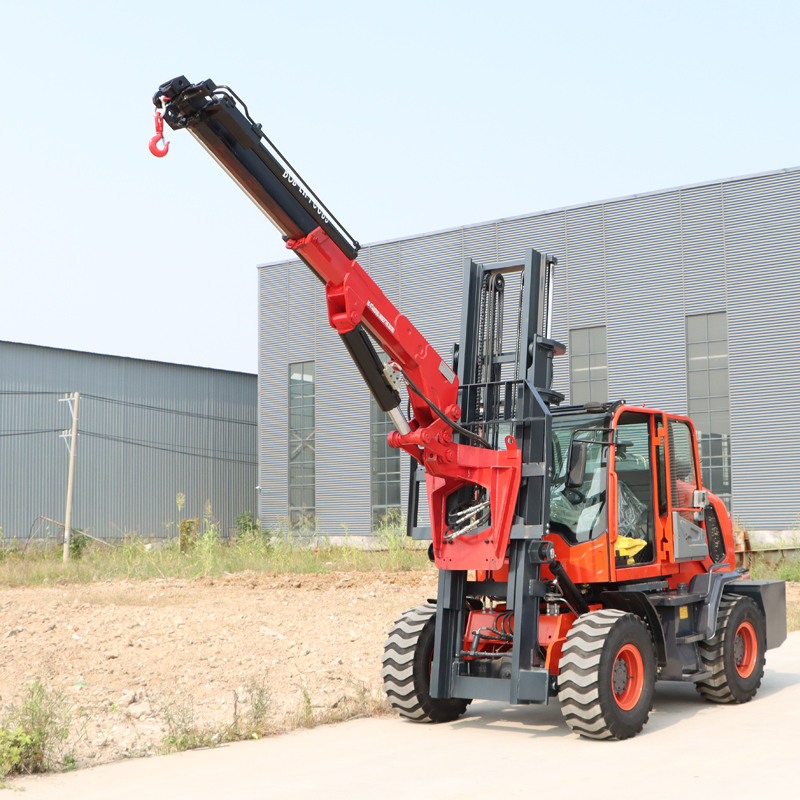

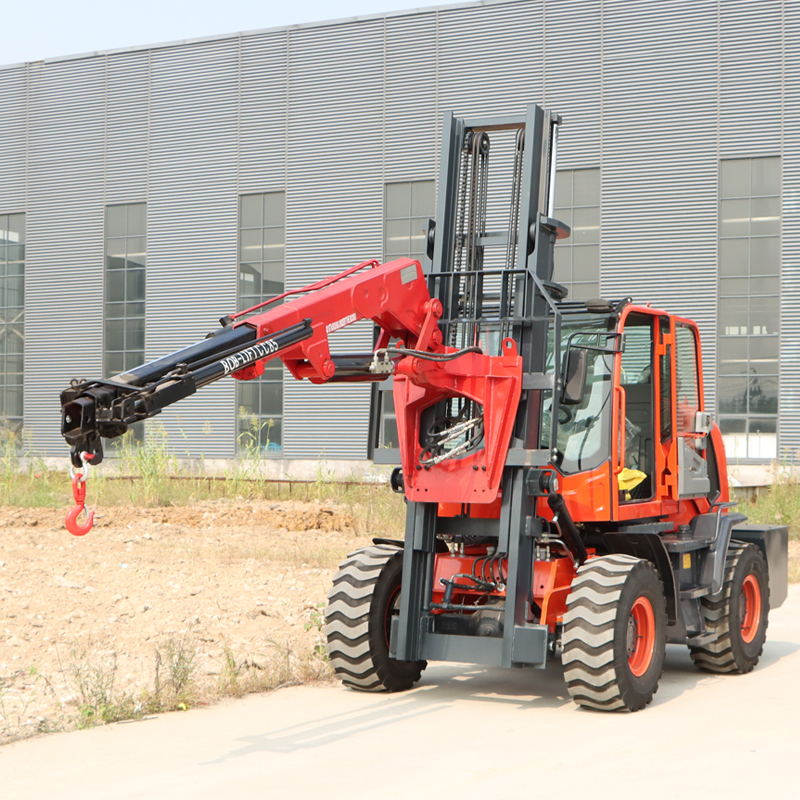

3.5 Ton Forklift Fly Jib Crane

The CC125 is a forklift fly jib crane rated at 3.5 t, with a working range of 8 m and a lifting height of 11 m with a 3 m mast or 12.5 m with a 4.5 m mast. It weighs 850 kg and is matched to 4 t / 6 t forklifts.

Why Buy the 4 Ton Forklift Fly Jib Crane?

The 4 Ton Forklift Fly Jib Crane is a piece of equipment that is designed to assist with tasks. This crane offers features and is capable of operating in pits. Manufactured by BOB LIFT, the 4 Ton Forklift Fly Jib Crane incorporates the technologies and research advancements.

BOB LIFT has conducted research and analysis to develop the 4 Ton Forklift Fly Jib Crane, a piece of equipment ideal for handling light duties in compact spaces. The company has built a reputation in China and around the world earning trust for its products.

The 4 Ton Forklift Fly Jib Crane is highly resilient and effective. It's also straightforward to upkeep and ideal for both international customers. This crane proves invaluable when operating in indoor spaces. Additionally, its telescopic boom demonstrates efficiency particularly when hoisting objects to levels.
