BOB-LIFT

Knuckle Boom Truck Mounted Cranes

See all 20 Ton Cranes

20 Ton Knuckle Boom Truck Mounted Crane

Model SQZ430

Choose your configuration

Winch

With or without a winch? Read our winch guide

Standard production model

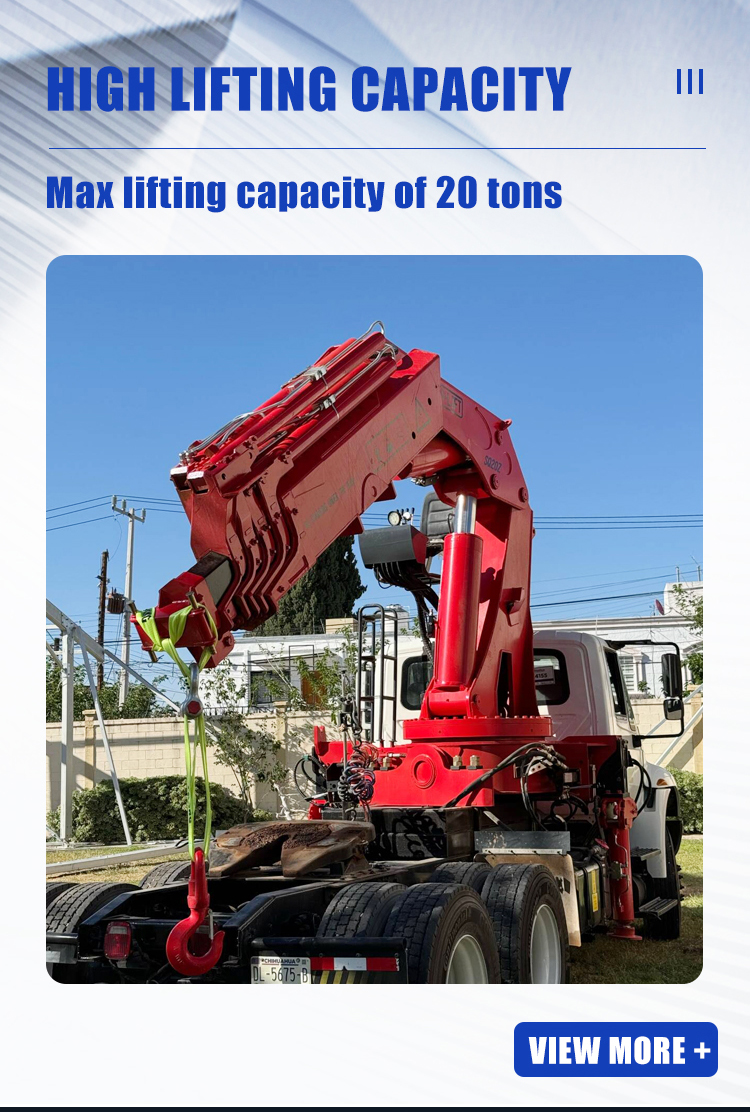

Max lifting capacity
20,000kg
Max lifting moment
42.3t·m
Max reach
16.6m
Lifting height
≈ 19m
Self weight
5,500kg
+86 158 5249 9415 info@boblift.com
20 Ton Knuckle Boom Truck Mounted Crane

Engineering data

Technical Specifications

SQZ430

Former model
SQ20ZA4

Model code explained

SQ
BOB-LIFT crane
Z
Knuckle boom
430
Lifting moment class (42.3 t·m)

Former model no. SQ20ZA4

Choose your configuration

Model Configuration Max reachLifting height
SQZ430 No winch 16.6 m ≈ 19 m
SQZ430J With winch 16.6 m ≈ 19 m

Knuckle boom truck mounted cranes can be built with or without a winch.

Lifting

Max Lifting Capacity
20,000kg
Max Lifting Moment
42.3t·m
Rotation Angle
360°
Max Working Radius
16.6m
Max Lifting Height
≈ 19 m

Hydraulics and power

Recommended Power
45kW
Hydraulic System Flow
63L/min
Hydraulic System Pressure
33MPa
Oil Tank Capacity
240 L

Machine

Self Weight
5,500kg
Outrigger Span
2300–6600 mm
Compare all Knuckle Boom Truck Mounted Cranes

Figures from the BOB-LIFT technical drawings. Confirm the final specification with our team before ordering.

Dimensions and load chart

SQZ430 dimension drawing and load chart

Select the drawing to view it full size.

How much it lifts at each reach The further the hook is from the crane, the less it can lift: 8,700 kg at 4.4 m, 1,910 kg at 16.6 m.
Lifts (kg) 8,700 6,280 4,550 3,430 2,730 2,240 1,910
Reach (m) 4.4 5.9 7.8 9.9 12 14.3 16.6

Reach is measured from the slewing centre to the hook. Figures from the drawing above.

Product details · SQZ430

20 Ton Knuckle Boom Truck Mounted Crane

20 t knuckle boom truck mounted crane

More videos3

Series video: it shows a crane of the same capacity and boom type, so paint and options can differ from this model.

More videos

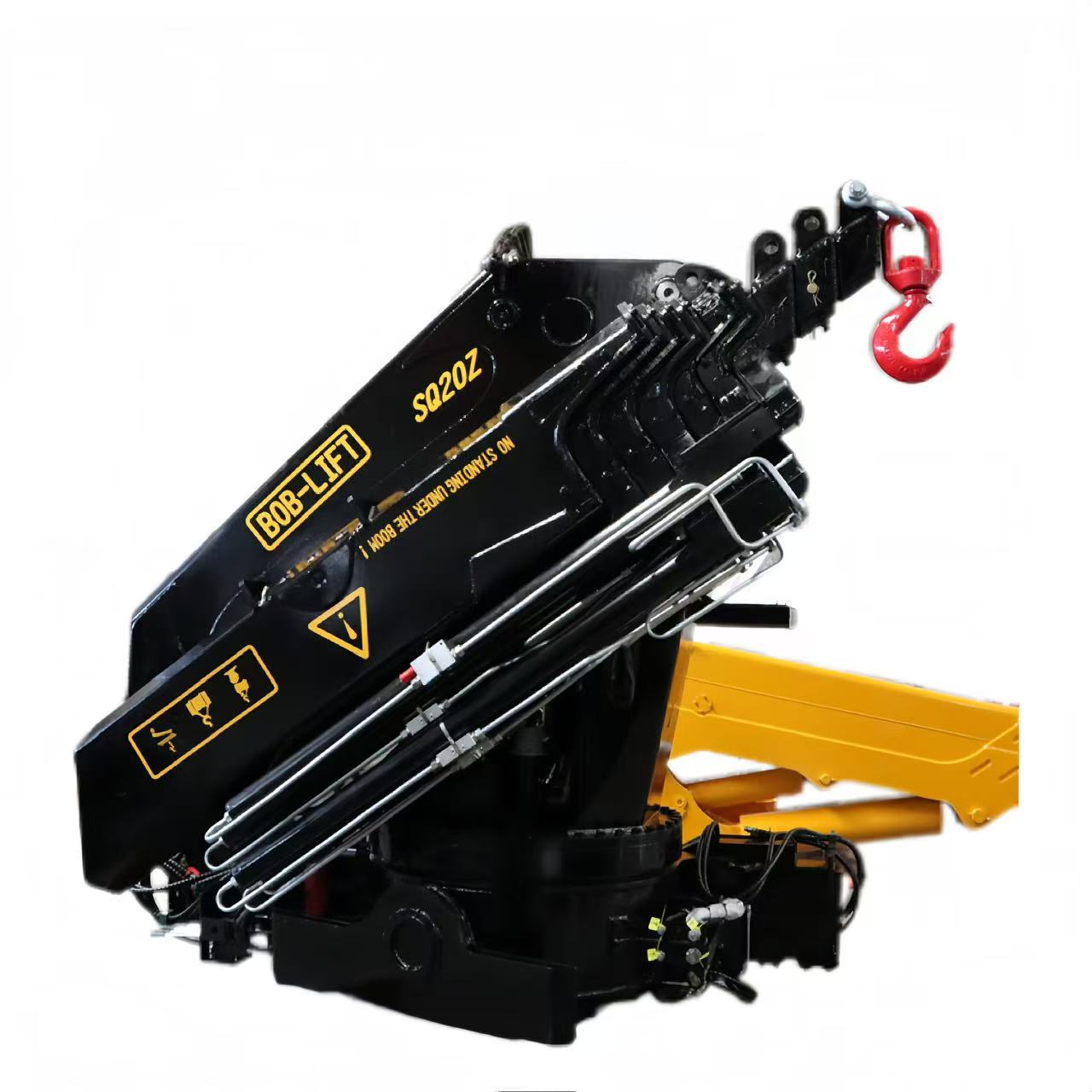

The SQZ430 is a 20 t knuckle boom truck-mounted crane with a maximum lifting moment of 42.3 t·m. It runs on a recommended 45 kW power supply with 63 L/min of hydraulic flow at 33 MPa, weighs 5500 kg and has a rated slewing angle of 360°.

Buyers often search for this machine as a 20 ton truck crane or crane truck. The SQZ430 is a loader crane fitted behind the cab, so the truck keeps its cargo body and carries the goods it lifts. That makes it different from a mobile truck crane, which has its own carrier and no cargo deck. We ship the SQZ430 on its own for mounting on your truck; we have fitted our cranes to Dongfeng, Isuzu and Sinotruk trucks.

Why Should You Purchase the 20 Ton Knuckle Boom Truck Mounted Crane?

BOB-LIFT have manufactured the 20 Ton Knuckle Boom Truck Mounted Crane using premium parts and technology, making it more efficient for users. The crane has several features that make it a great piece of machinery for various tasks.

The 20 Ton Knuckle Boom Truck Mounted Crane is much lighter than its competition and has a good load ratio. It has square legs that protect the cylinder and provide additional support when lifting weight that’s above 6.3T.

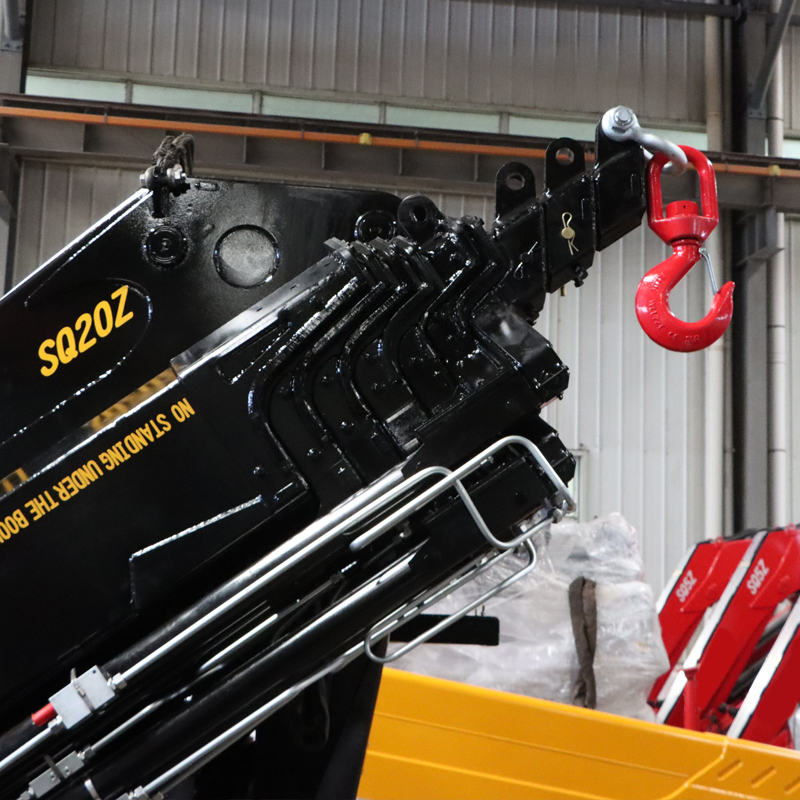

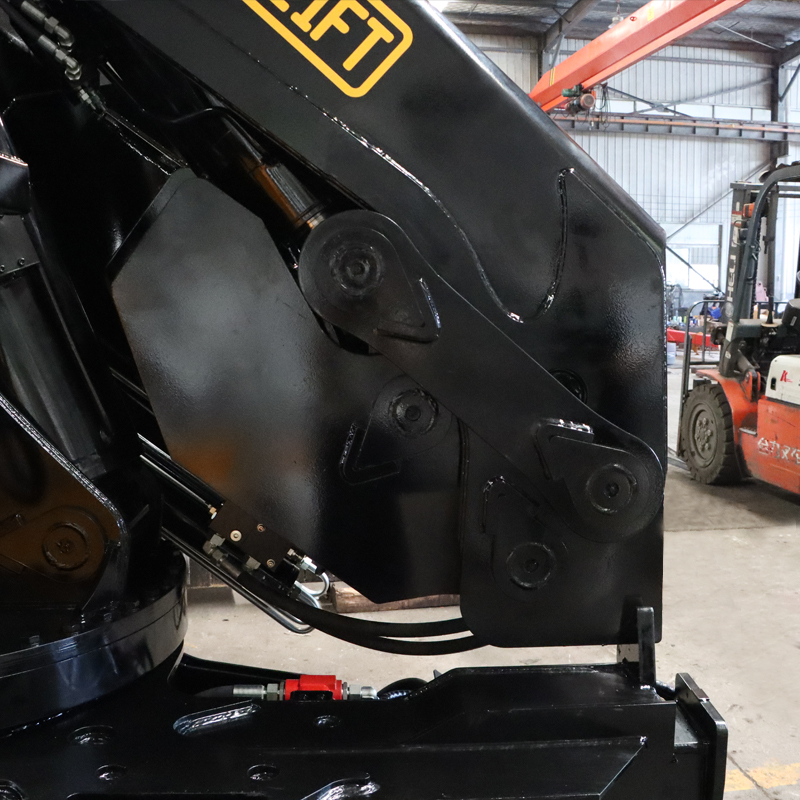

Additionally, the crane has a better lifting capacity due to its link-rod system. Its outer boom can manage a negative elevation angle and provides more lifting space. It has a telescopic boom with coupling technology that makes it more efficient. It also has a symmetrical central design with a hexagonal boom that prevents it from bending under extreme weight.

Optional attachments

  • Hydraulic gripper opened and closed by its own cylinder to grab and release loads.
  • Clamshell bucket for loading, unloading and light digging of waste, chippings and soil.
  • Orange peel grab for scrap and bulk material.
  • Timber grapple for logs and timber.
  • Auger for tree-planting holes, utility poles, foundation piles and soil sampling.

Certification

The SQZ430 series holds a CE certificate of conformity under the EU Machinery Directive 2006/42/EC.

Knuckle Boom Truck Mounted Crane

Product technical advantages

  • High-strength welded structure

    High-strength welded structure

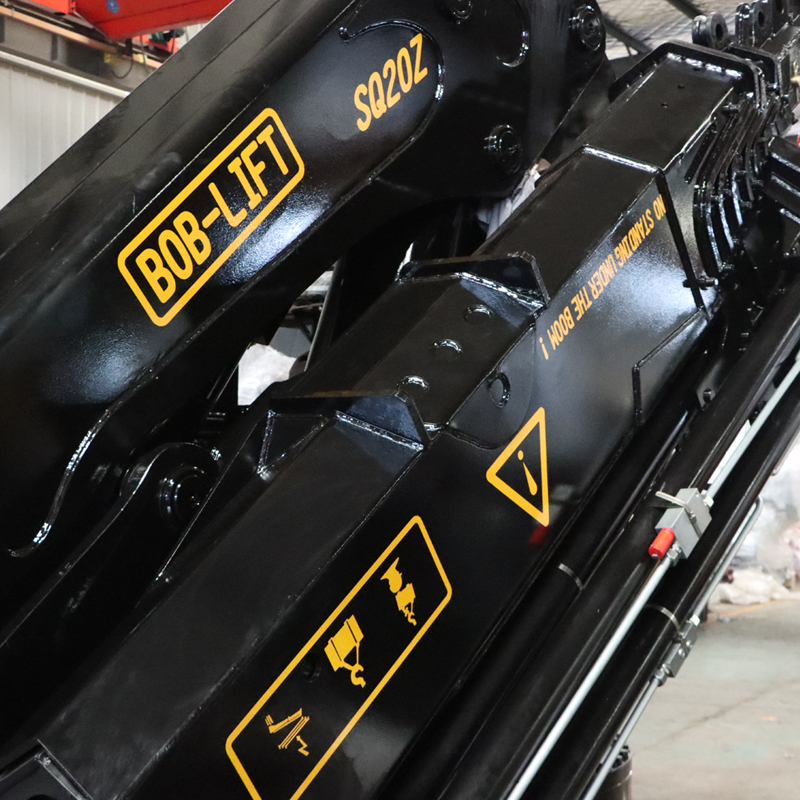

    Welded high-strength plate with a hexagonal boom section.

  • Box-type outriggers

    Box-type outriggers

    Box outriggers above 6.3 t protect the cylinders.

  • Optional attachments

    Optional attachments

    Winch, auger, basket or grapple on request.

  • Operation modes

    Operation modes

    Manual levers, aerial seat or wireless remote.

  • Dual four-bar linkage

    Dual four-bar linkage

    Reverse-angle reach for tight jobs.

  • Dedicated torque limiter Load moment limiter on every crane, safety certified.
  • Large-span outriggers Wide fixed outriggers, manual flip optional.

Manufacturing & delivery

From our workshop to your port

  1. Assembly 01

    Assembly

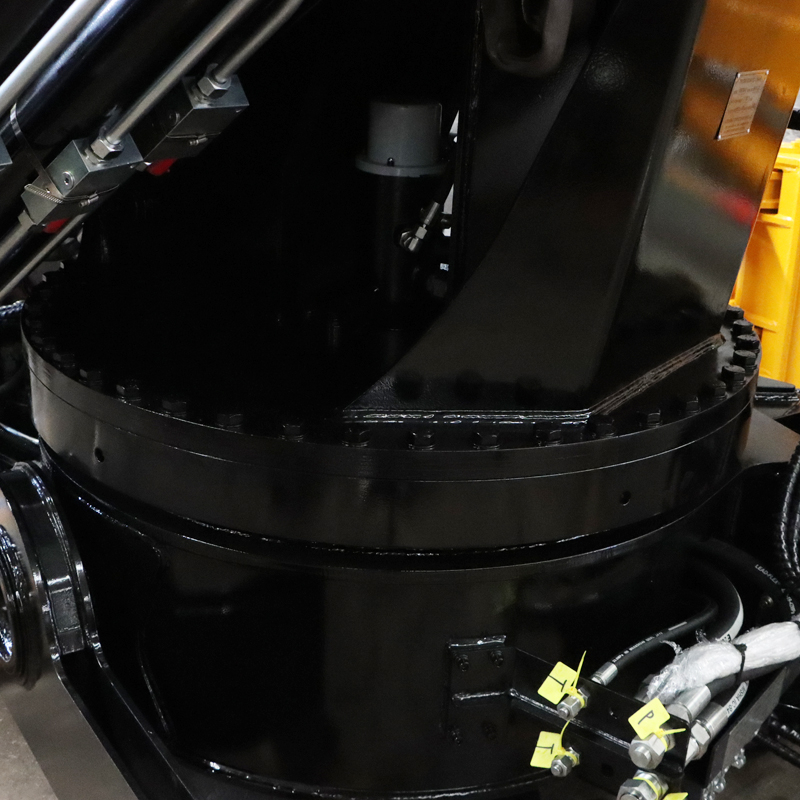

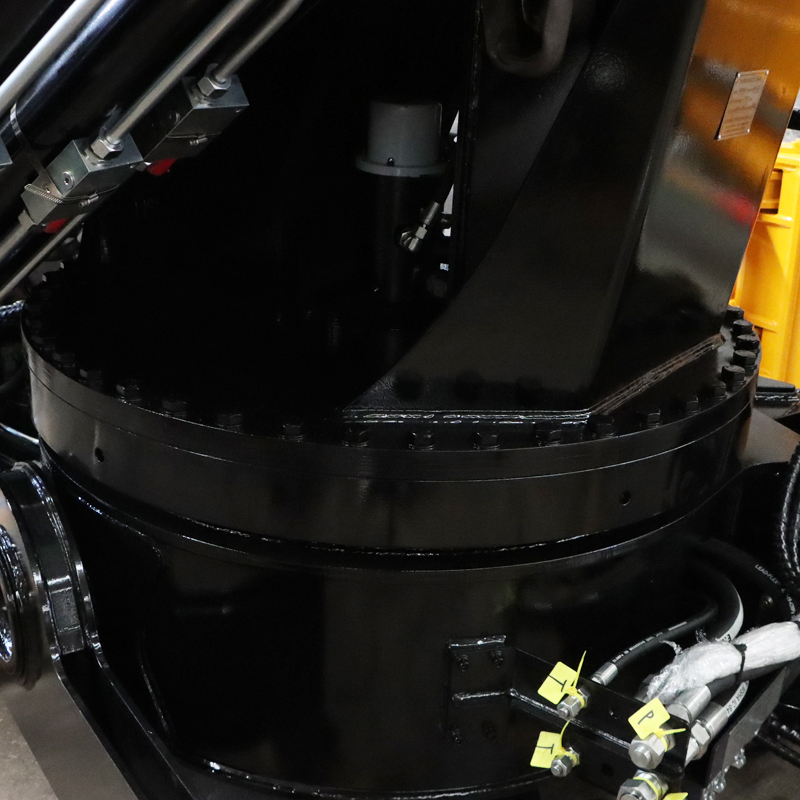

    Slewing base, column and booms are assembled by hand in our Xuzhou workshop.

  2. Load test 02

    Load test

    The crane lifts test weights through its working range before release.

  3. Final check 03

    Final check

    Finished cranes are inspected and lined up for dispatch.

  4. Packing 04

    Packing

    Wrapped in film and strapped to protect paint and hydraulics in transit.

  5. Container loading 05

    Container loading

    Loaded into containers at the factory and shipped to your port.

Shipping & warranty

Shipping, warranty and documents

Shipping

Lead time and container loading are confirmed with your quotation.

Warranty and parts

12 months

Send the model, serial number and a photo or video of the issue; our team guides the repair and ships the parts.

Order from 1 unit

Documents

FAQ

Questions about the SQZ430

Ordering and service

Which configuration should we choose for this model?

Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.

Can the crane be customized for our working conditions?

BOB-LIFT can adjust configuration around lifting radius, site access, operation scenario and destination requirements.

What is the typical delivery time?

Lead time depends on the configuration, order quantity and destination. We confirm it in writing with your quotation.

What export documents are provided?

Each order ships with a commercial invoice, packing list and bill of lading, plus the product documents required for the confirmed order.

Do you provide installation and operation training?

We can mount the crane on your truck before shipping. For installation on site, our team provides installation guidance and remote technical support, and our Service & Operation page has short videos on checks before and during lifting.

What after-sales support is available?

Cranes carry a 12-month warranty. Send the model, serial number and a photo or video of the issue; our team guides the repair and ships the parts.
