Truck Mounted Aerial Work Platform
Engineering data
Figures from the BOB-LIFT technical drawings. Confirm the final specification with our team before ordering.
Product details

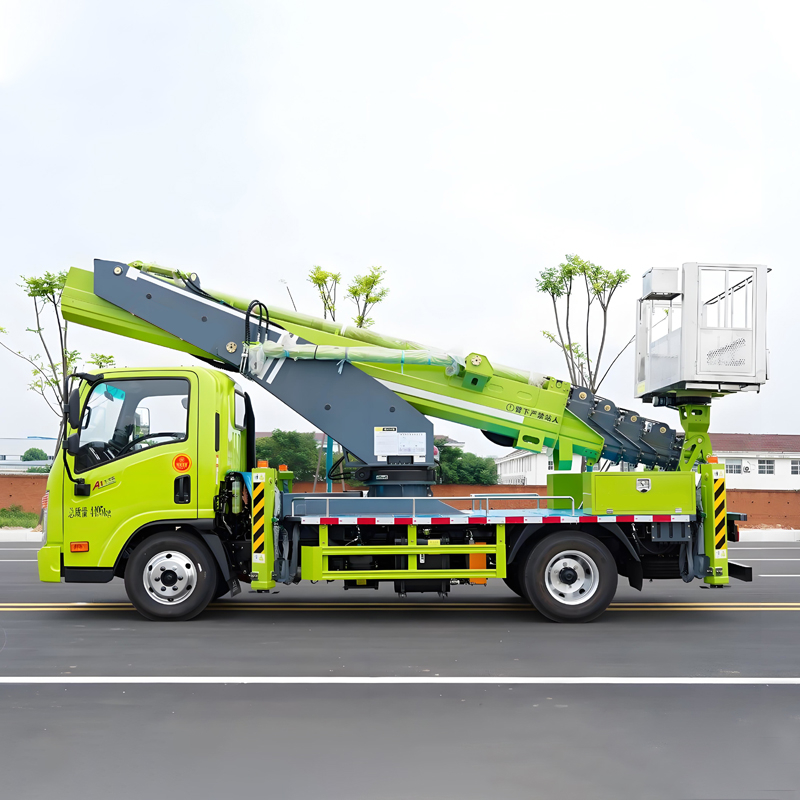

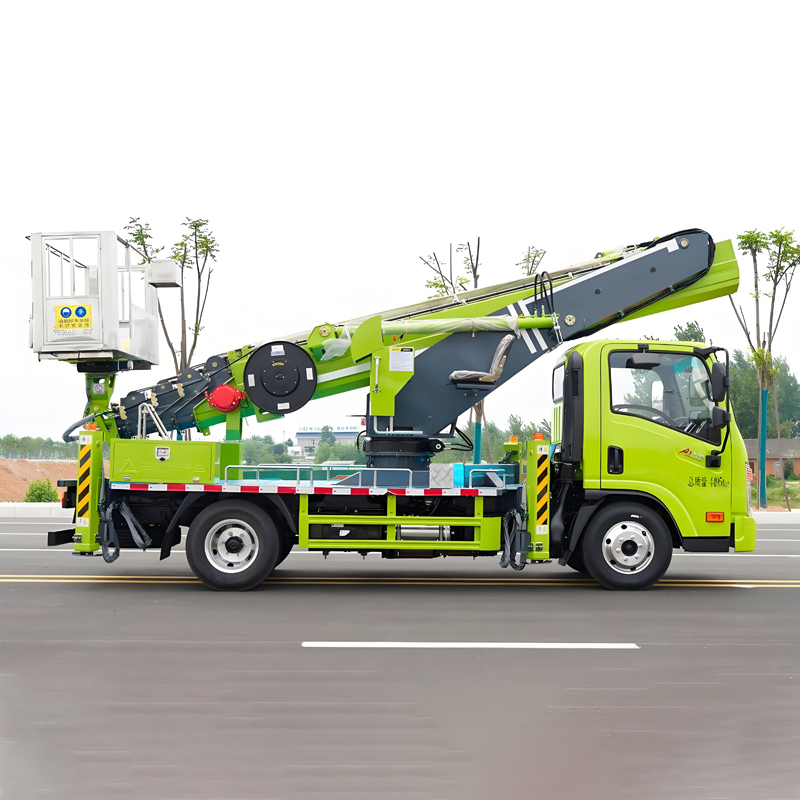

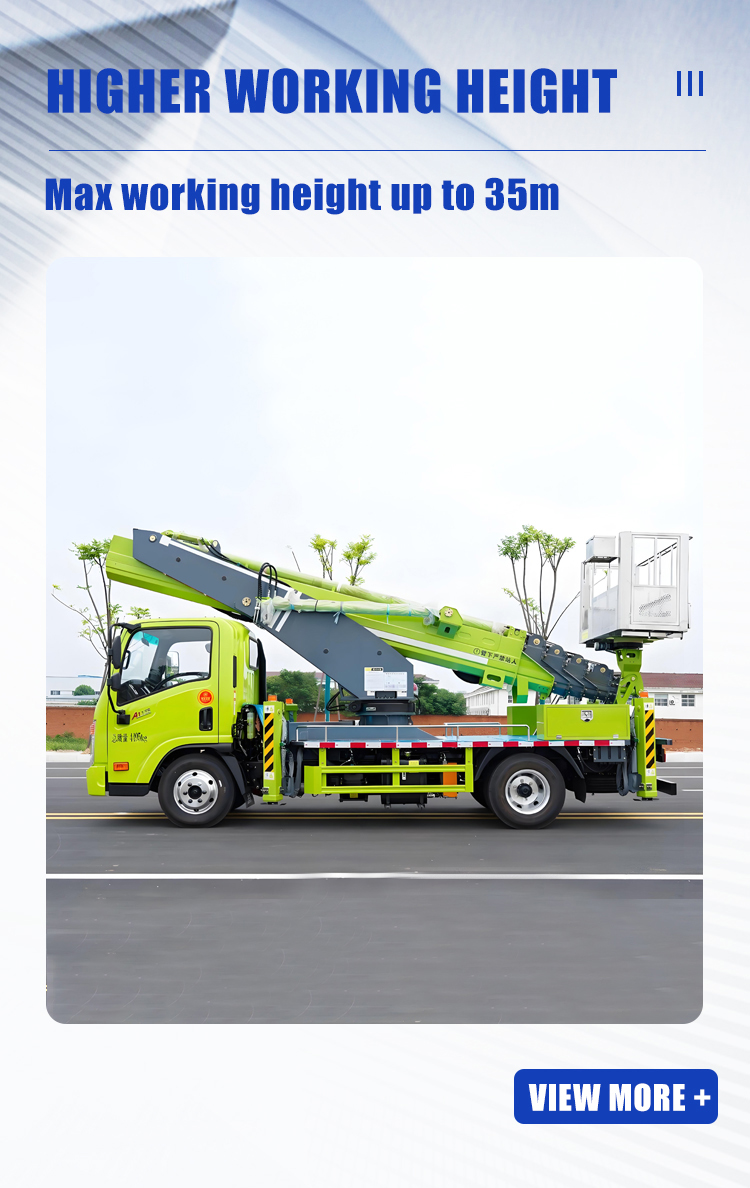

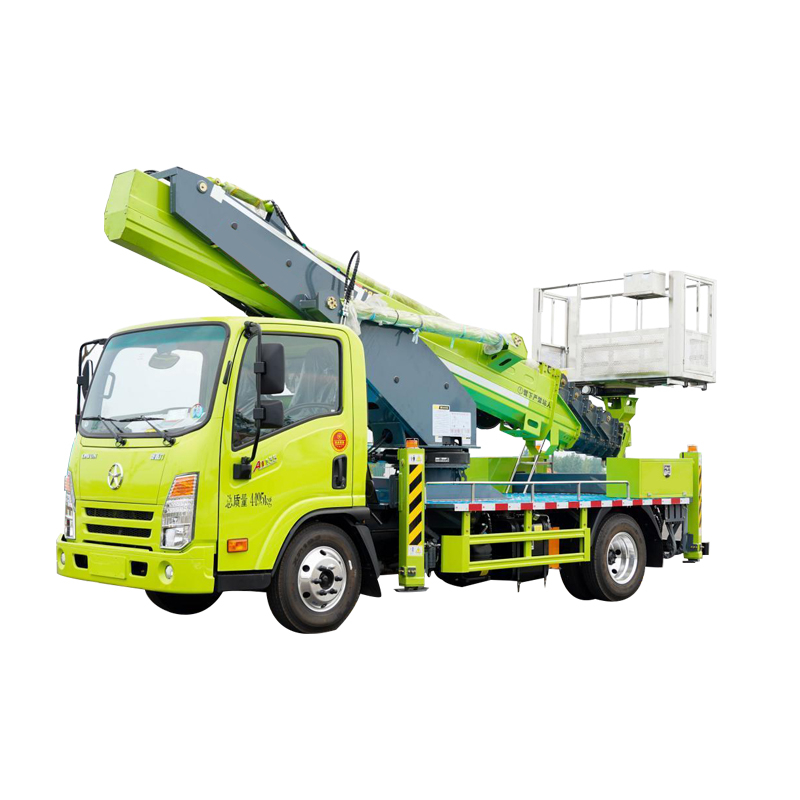

The BOB-LIFT 35 m truck-mounted aerial work platform lifts a work basket to a maximum working height of 35 m and reaches out to a maximum operating range of 24 m. It is built for high facades, tall street and stadium lighting, signage on multi-storey buildings and maintenance on large industrial roofs, mounted as a boom body on a truck chassis.

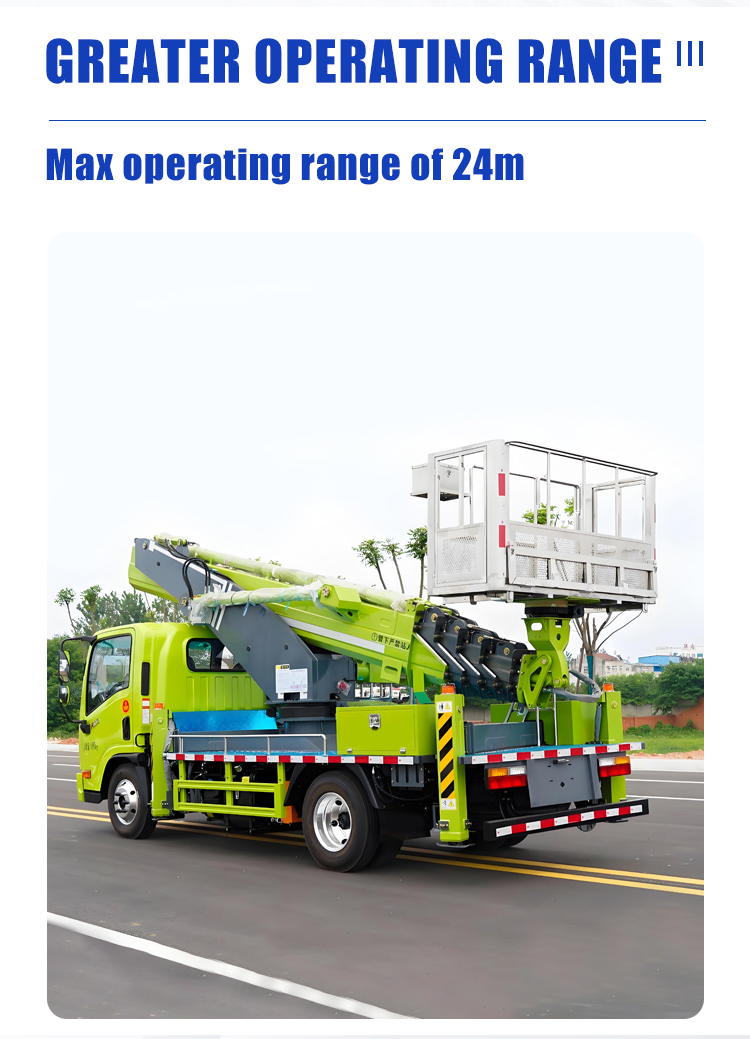

Working height is the highest point at which the crew can work from the basket, so 35 m covers jobs up to that level. Operating range is how far the basket can reach out from the truck: 24 m on this model. Range drops as the boom rises, so check both figures against the job: the height of the work, and how far it is from where the truck can stand with its outriggers set.
| Maximum Working Height | 35 m |
|---|---|
| Maximum Operating Range | 24 m |
| Stainless Steel Basket Length | 1.6 m |
Figures from the BOB-LIFT 35 m aerial work platform product sheet. Ask our team to check the working range of this model before you plan a job close to its limits.

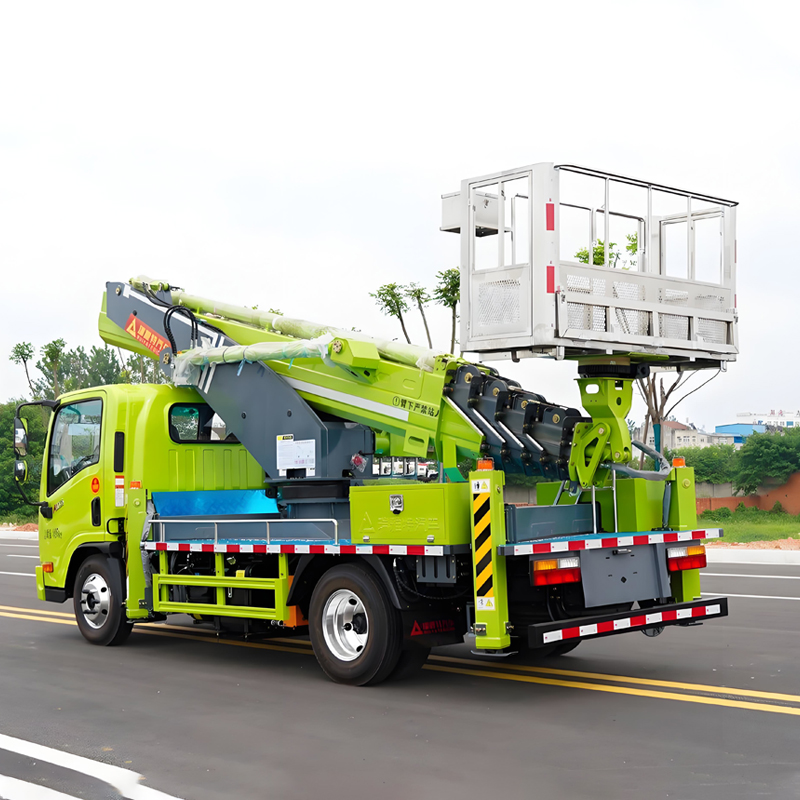

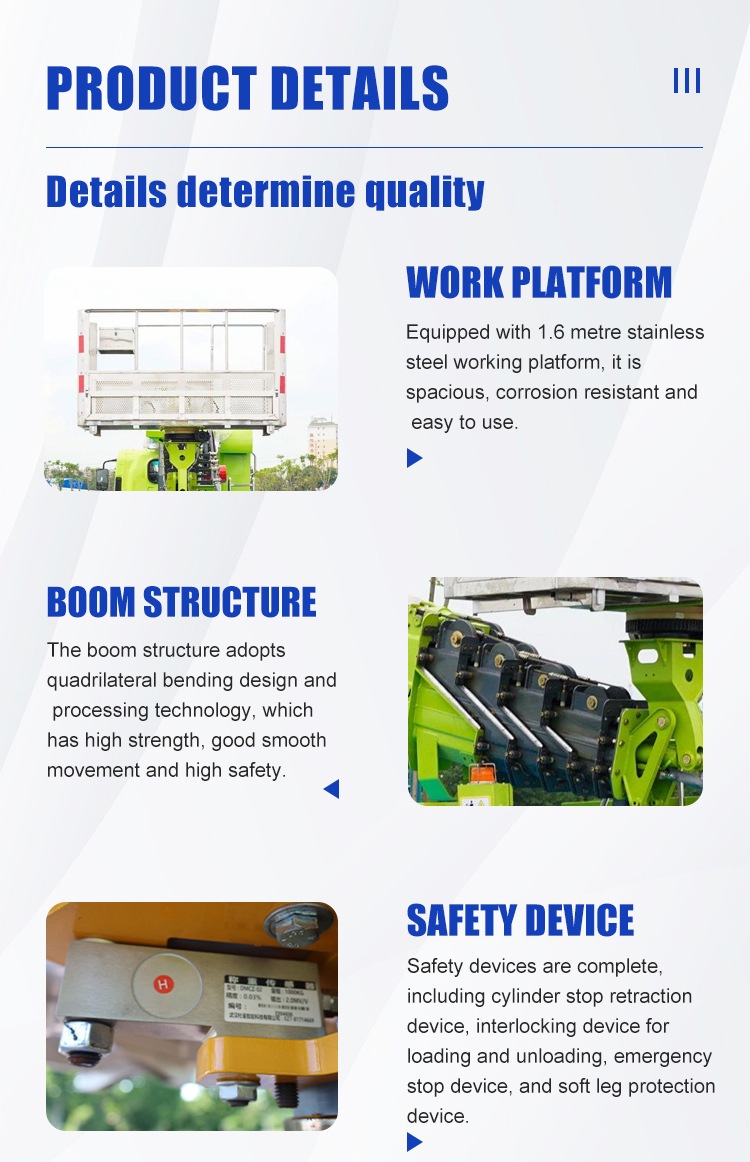

The work basket is a 1.6 m stainless steel platform: it resists corrosion in rain and near the sea, and it has room for a worker and tools. The boom sections use a four-sided bent profile, which gives a strong, stiff section and smooth telescoping. Double-Section Hydraulic Outriggers spread wider than single-section legs, which keeps the centre of gravity more stable when the boom is out to the side.
The platform has a cylinder stop that prevents the boom from retracting on its own, an interlock between the outriggers and the boom so the boom cannot be raised before the truck is set up, an emergency stop, and soft-leg protection that warns when an outrigger is not bearing properly on the ground. Operators still need training, a harness clipped to the basket and a safe distance from power lines.

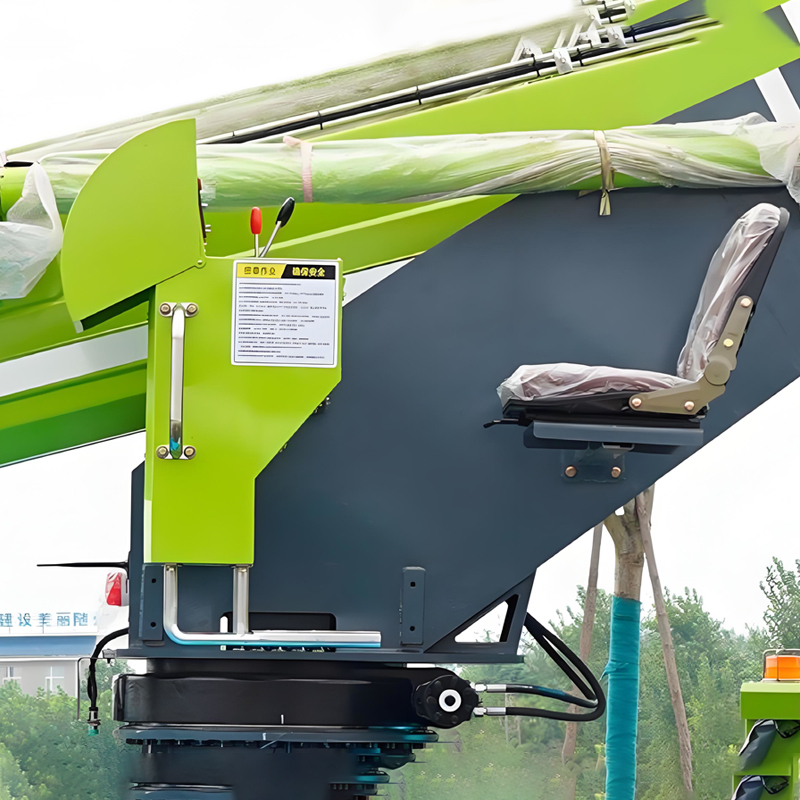

The platform is worked from a Lever Control Panel with a display at the truck, and from a Wireless Remote. With the remote the operator can stand where the view of the basket is clear and run every movement with one hand.
Typical jobs: Steel Structure Work, Street Lighting, Electrical Repairs, Tree Trimming, Fruit Picking, Window Cleaning, Facade Repairs, Advertising Signs and Rescue Operations.
The BOB-LIFT range has 5 truck-mounted models. Each row gives the maximum working height, then the maximum operating range:
| 18 m | 12 m |
|---|---|
| 28 m | 18 m |
| 30 m | 23 m |
| 35 m | 24 m |
| 40 m | 24 m |
If most of your work is well below 35 m, a smaller model is lighter and fits a smaller chassis; if you often work at 35 m, look one size up. Compare the other models: 18 m, 28 m, 30 m, 40 m.
BOB-LIFT supplies the aerial platform as a body to be mounted on a truck chassis. Tell us the working height and outreach you need, the chassis you plan to use or can buy locally, and the destination country, and our team will confirm the model and the mounting details.
FAQ
The maximum working height is 35 m and the maximum operating range, the sideways reach of the basket, is 24 m. Reach falls as the boom rises, so check both figures against your job.
BOB-LIFT supplies the aerial platform as a body for mounting on a truck chassis. Tell us the chassis you plan to use and we will confirm whether it suits this model.
A cylinder stop against boom retraction, an outrigger and boom interlock, an emergency stop and soft-leg protection on the outriggers.
From a lever control panel with a display on the truck, or from a wireless remote that lets the operator stand where the basket is clearly in view.
Work up to 35 m, such as building maintenance, facade and window work, street lighting, electrical repairs, tree trimming and sign installation, where the truck can park within 24 m of the work.
Not answered here?
Send us your question and our team replies with answers for your site.
Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.
BOB-LIFT can adjust configuration around lifting radius, site access, operation scenario and destination requirements.
Lead time depends on the configuration, order quantity and destination. We confirm it in writing with your quotation.
Each order ships with a commercial invoice, packing list and bill of lading, plus the product documents required for the confirmed order.
We can mount the crane on your truck before shipping. For installation on site, our team provides installation guidance and remote technical support, and our Service & Operation page has short videos on checks before and during lifting.
Cranes carry a 12-month warranty. Send the model, serial number and a photo or video of the issue; our team guides the repair and ships the parts.
