Truck Mounted Aerial Work Platform
Engineering data
Confirm the final specification with our team before ordering.
Product details

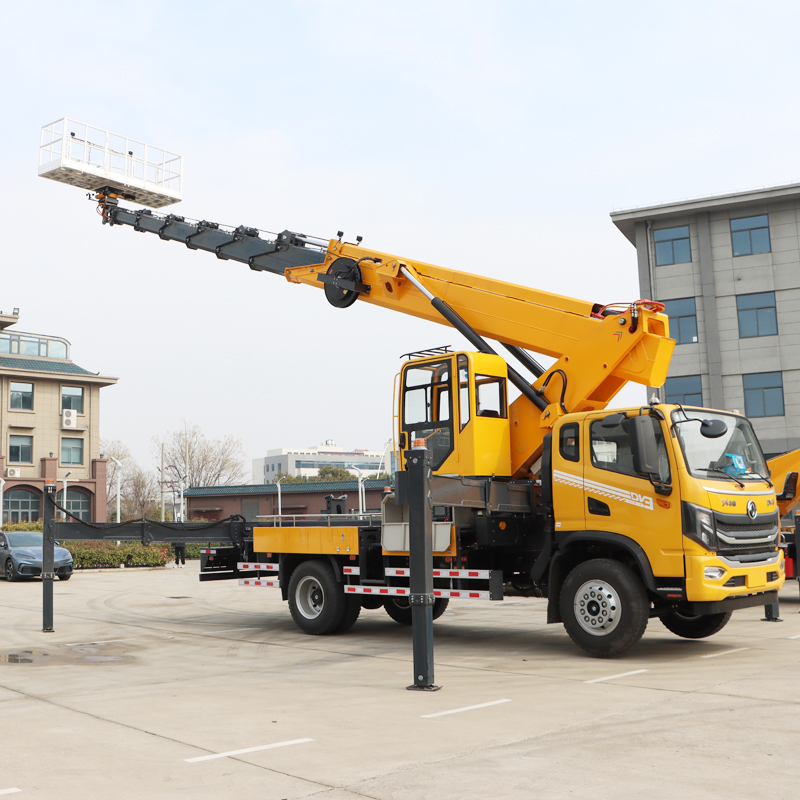

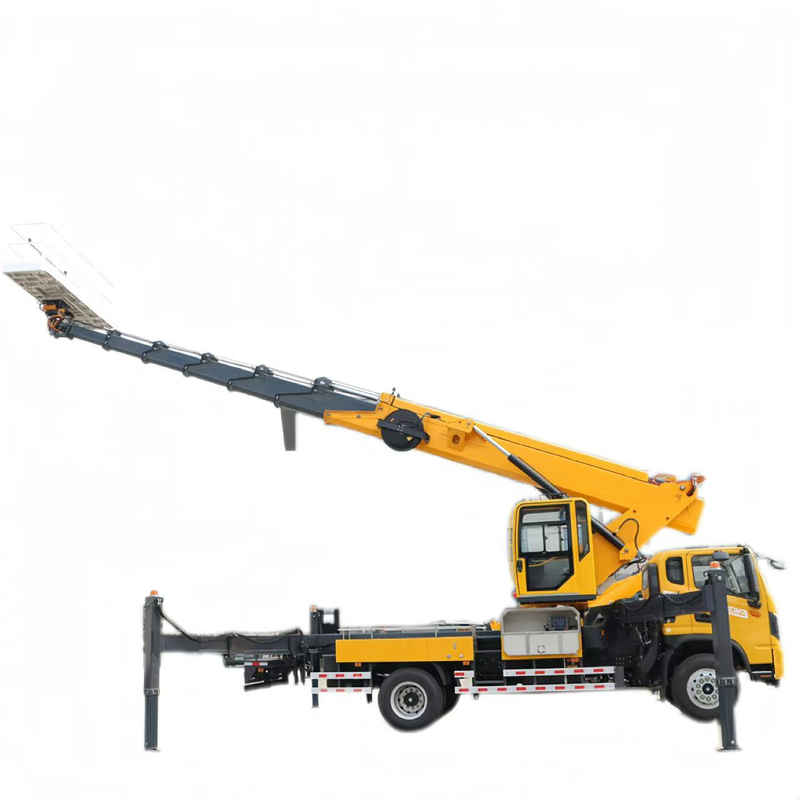

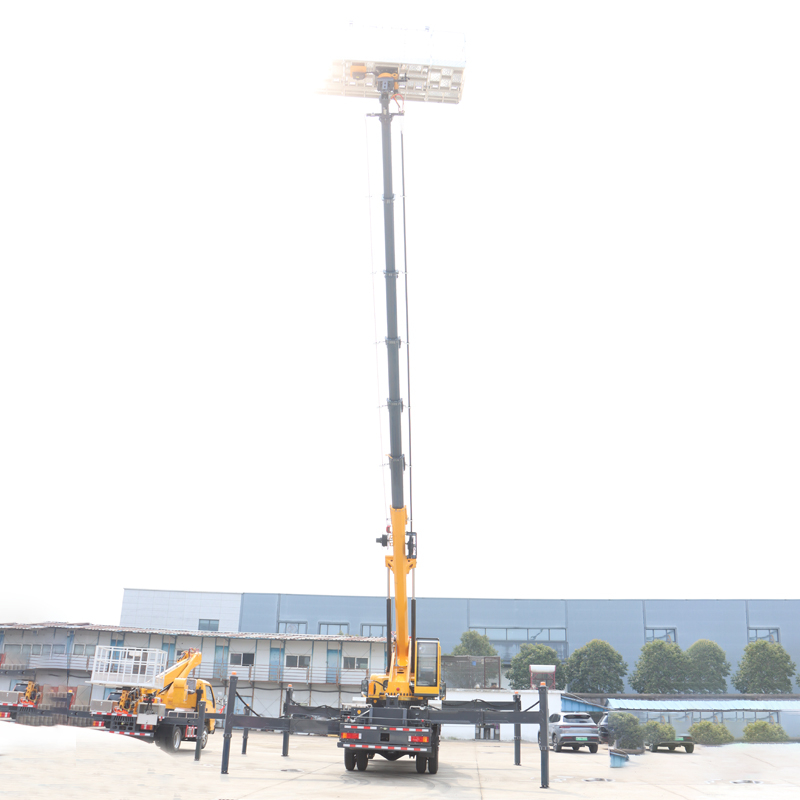

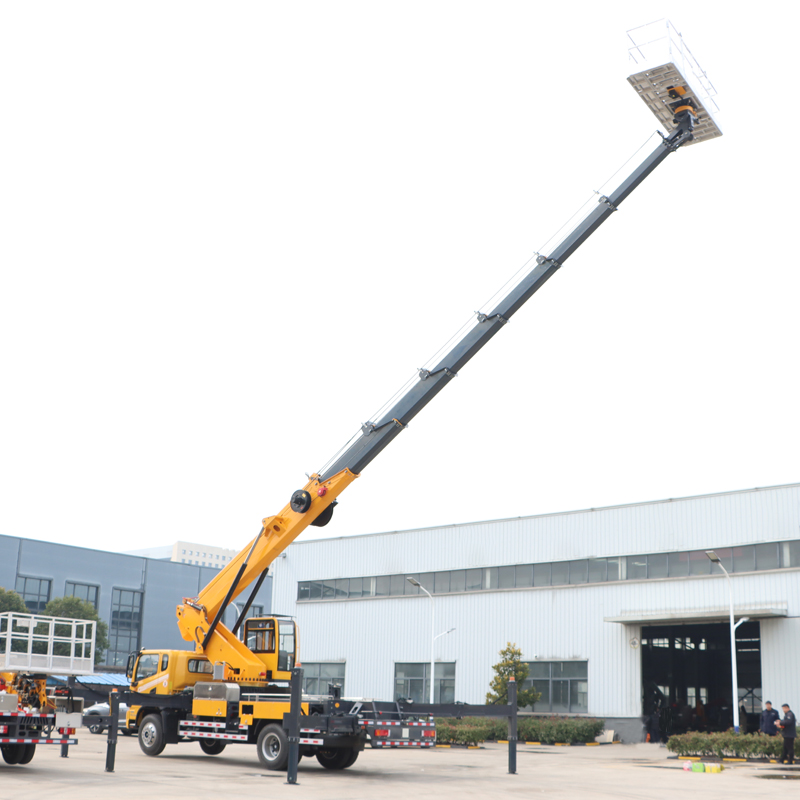

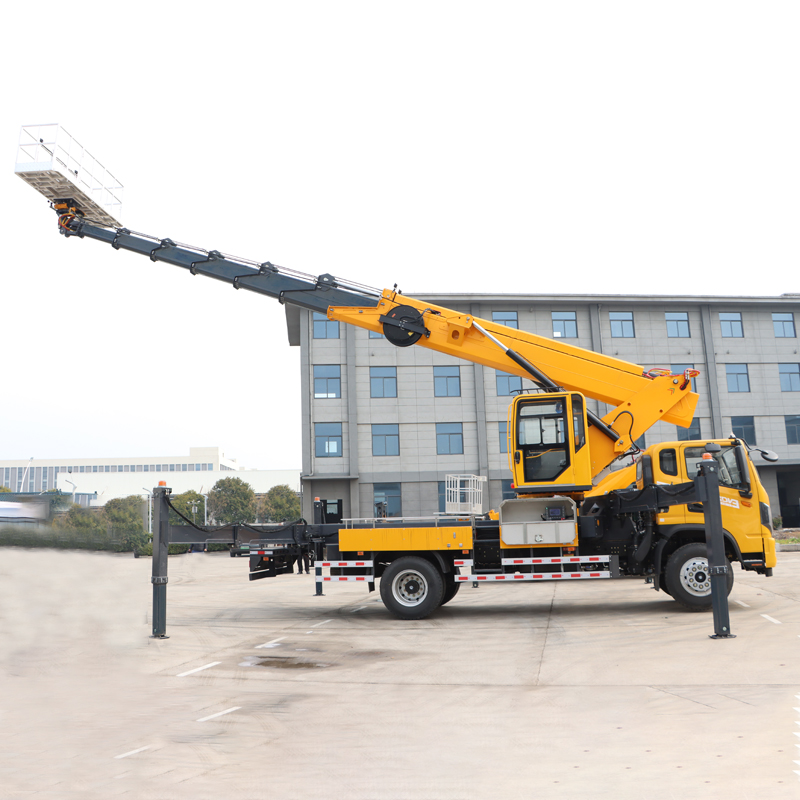

The BOB-LIFT 40 m truck-mounted aerial work platform is the tallest model in the range. It lifts a work basket to a maximum working height of 40 m and reaches out to a maximum operating range of 24 m, and it adds a wind speed sensor and a basket load sensor that limit the working envelope while the crew is in the air.

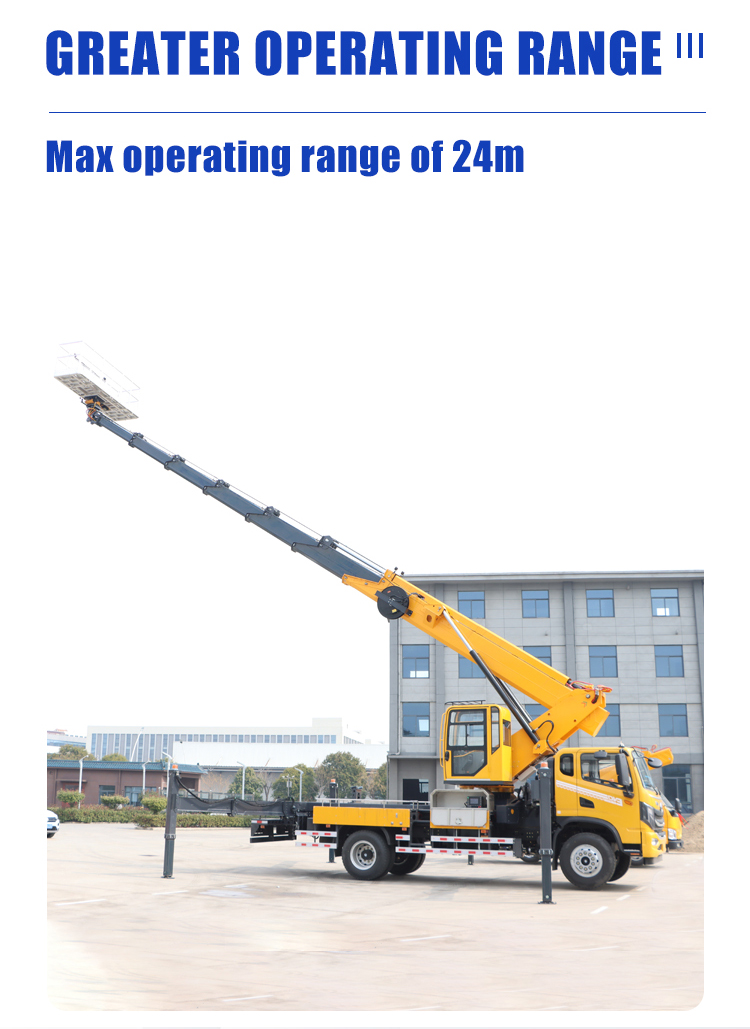

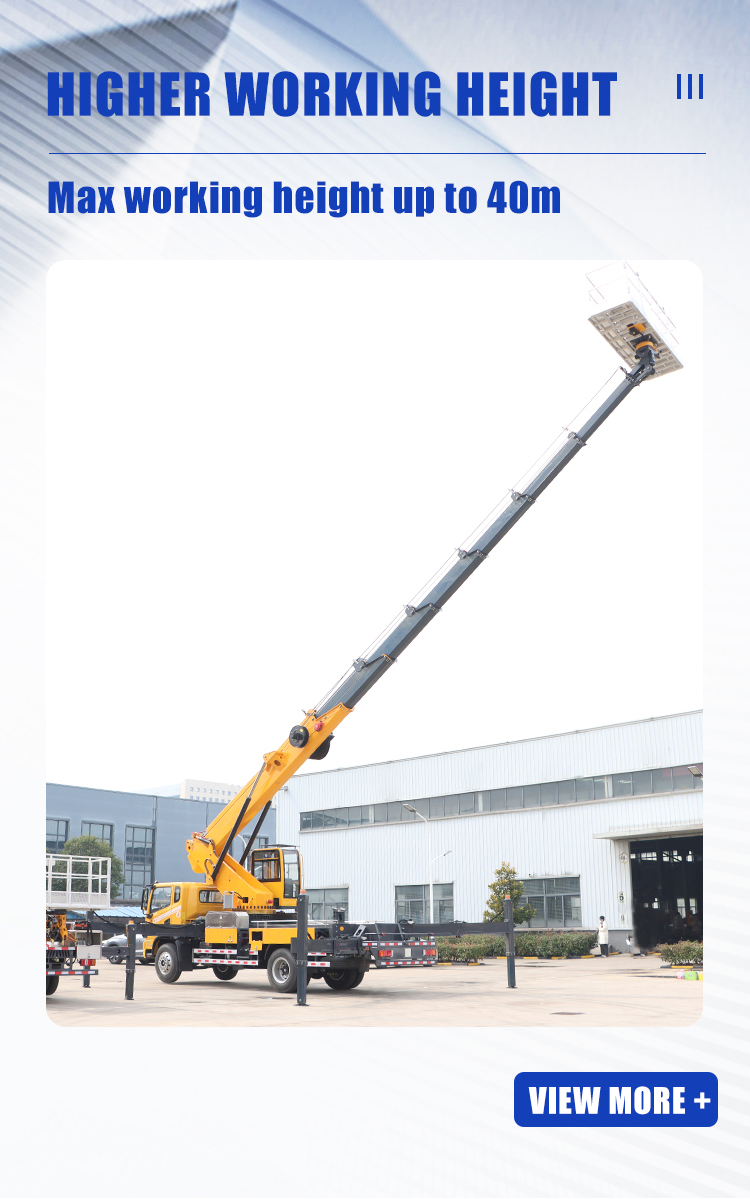

Working height is the highest point at which the crew can work from the basket, so 40 m covers jobs up to that level. Operating range is how far the basket can reach out from the truck: 24 m on this model. Range drops as the boom rises, so check both figures against the job: the height of the work, and how far it is from where the truck can stand with its outriggers set.
| Maximum Working Height | 40 m |
|---|---|
| Maximum Operating Range | 24 m |
Figures from the BOB-LIFT 40 m aerial work platform product sheet. Ask our team to check the working range of this model before you plan a job close to its limits.

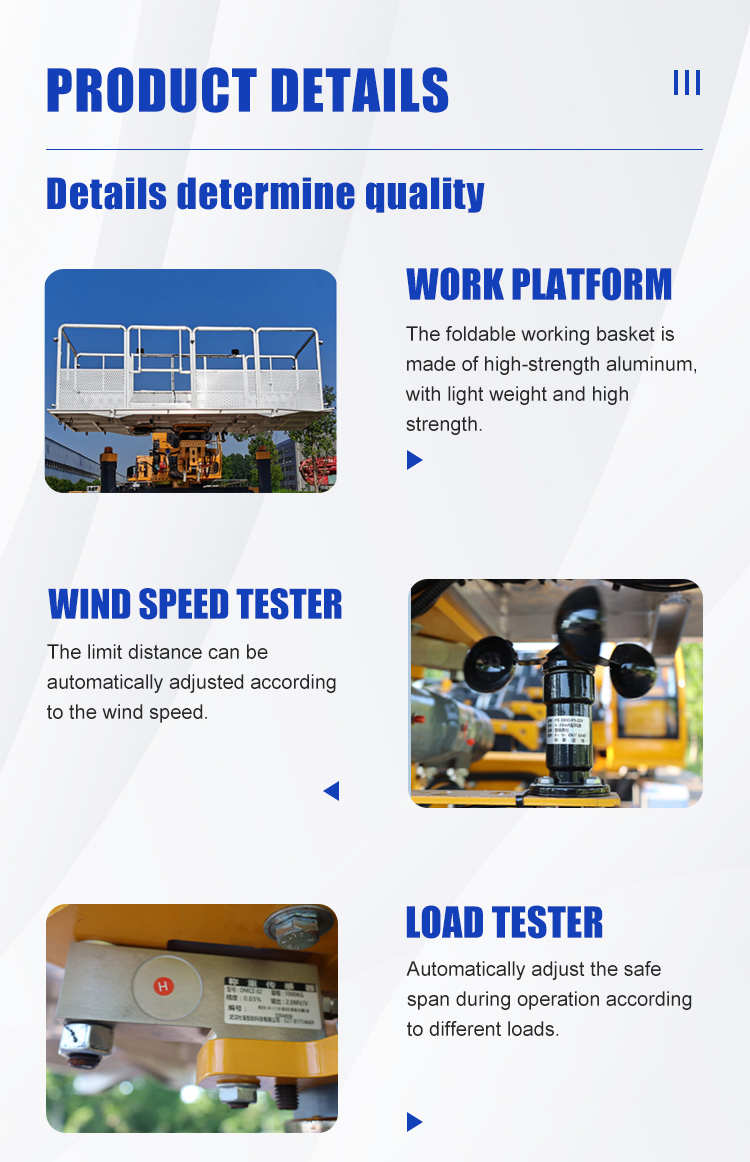

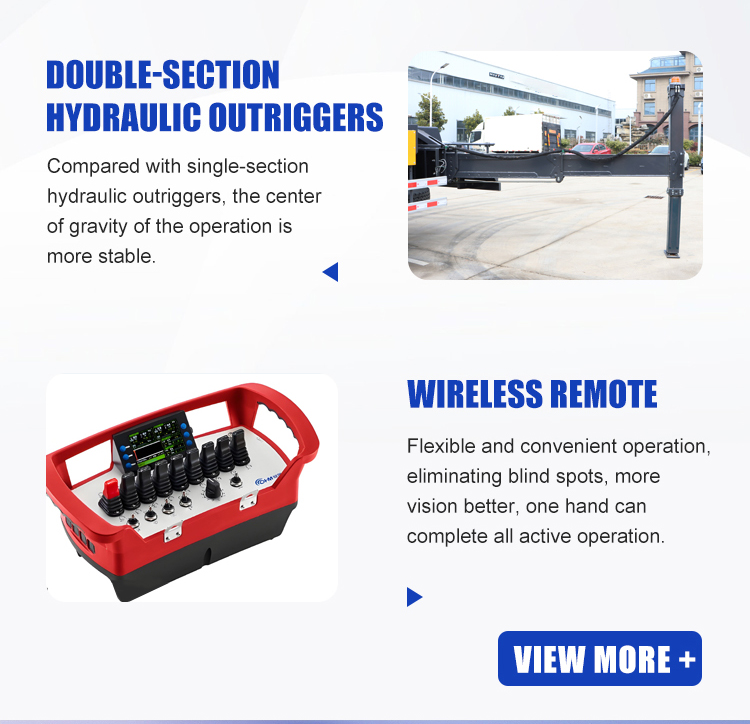

The 40 m model uses a foldable work basket made of high-strength aluminium, which keeps weight off the boom tip at this height. Double-Section Hydraulic Outriggers spread wider than single-section legs, which keeps the centre of gravity more stable when the long boom is out to the side.
At 40 m the wind is often much stronger than at ground level. A wind speed sensor measures it, and the control system limits how far the basket can reach out as the wind rises. A load sensor under the basket does the same for weight: the safe reach is adjusted automatically to the load in the basket. Crews should still stop work when the wind goes above the limit in the operating manual.
The platform is worked from a Lever Control Panel with a display at the truck, and from a Wireless Remote. With the remote the operator can stand where the view of the basket is clear and run every movement with one hand.
Typical jobs: Steel Structure Work, Street Lighting, Electrical Repairs, Tree Trimming, Fruit Picking, Window Cleaning, Facade Repairs, Advertising Signs and Rescue Operations.
The BOB-LIFT range has 5 truck-mounted models. Each row gives the maximum working height, then the maximum operating range:
| 18 m | 12 m |
|---|---|
| 28 m | 18 m |
| 30 m | 23 m |
| 35 m | 24 m |
| 40 m | 24 m |
If most of your work is well below 40 m, a smaller model is lighter and fits a smaller chassis. Compare the other models: 18 m, 28 m, 30 m, 35 m.
BOB-LIFT supplies the aerial platform as a body to be mounted on a truck chassis. Tell us the working height and outreach you need, the chassis you plan to use or can buy locally, and the destination country, and our team will confirm the model and the mounting details.
FAQ
The maximum working height is 40 m and the maximum operating range, the sideways reach of the basket, is 24 m. Reach falls as the boom rises, so check both figures against your job.
BOB-LIFT supplies the aerial platform as a body for mounting on a truck chassis. Tell us the chassis you plan to use and we will confirm whether it suits this model.
A wind speed sensor feeds the control system, which limits the reach of the basket as the wind rises. A load sensor under the basket adjusts the safe reach to the weight on board.
From a lever control panel with a display on the truck, or from a wireless remote that lets the operator stand where the basket is clearly in view.
Work up to 40 m, such as building maintenance, facade and window work, street lighting, electrical repairs, tree trimming and sign installation, where the truck can park within 24 m of the work.
Not answered here?
Send us your question and our team replies with answers for your site.
Send the working conditions, destination and site access details to BOB-LIFT. The engineering team will confirm a practical configuration before quotation.
BOB-LIFT can adjust configuration around lifting radius, site access, operation scenario and destination requirements.
Lead time depends on the configuration, order quantity and destination. We confirm it in writing with your quotation.
Each order ships with a commercial invoice, packing list and bill of lading, plus the product documents required for the confirmed order.
We can mount the crane on your truck before shipping. For installation on site, our team provides installation guidance and remote technical support, and our Service & Operation page has short videos on checks before and during lifting.
Cranes carry a 12-month warranty. Send the model, serial number and a photo or video of the issue; our team guides the repair and ships the parts.
