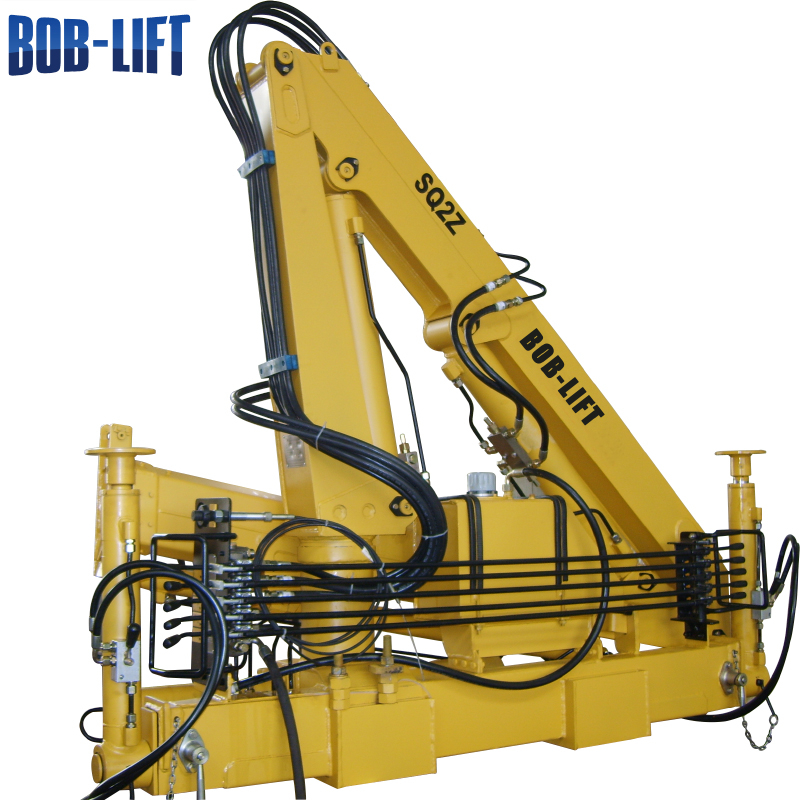

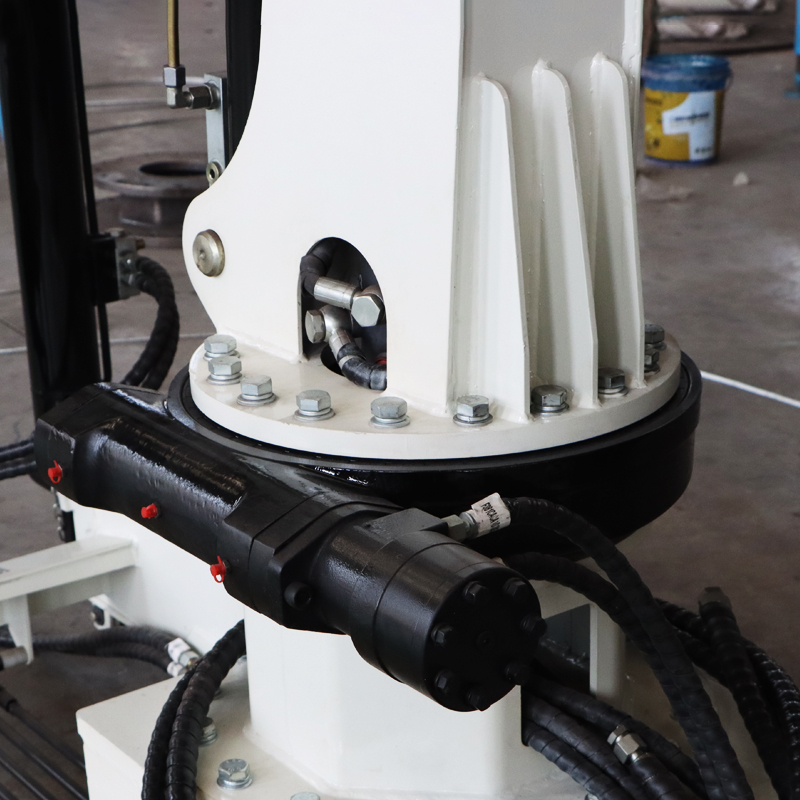

The SQ2ZA2 is a 2 ton knuckle boom truck crane. It lifts 2,000 kg at 2.1 m, 1,000 kg at 4.1 m and 750 kg at its full 5.1 m reach, with a maximum lifting moment of 4.2 t·m and 370° slewing. The crane itself weighs 650 kg.
What the 2 ton SQ2ZA2 is built for

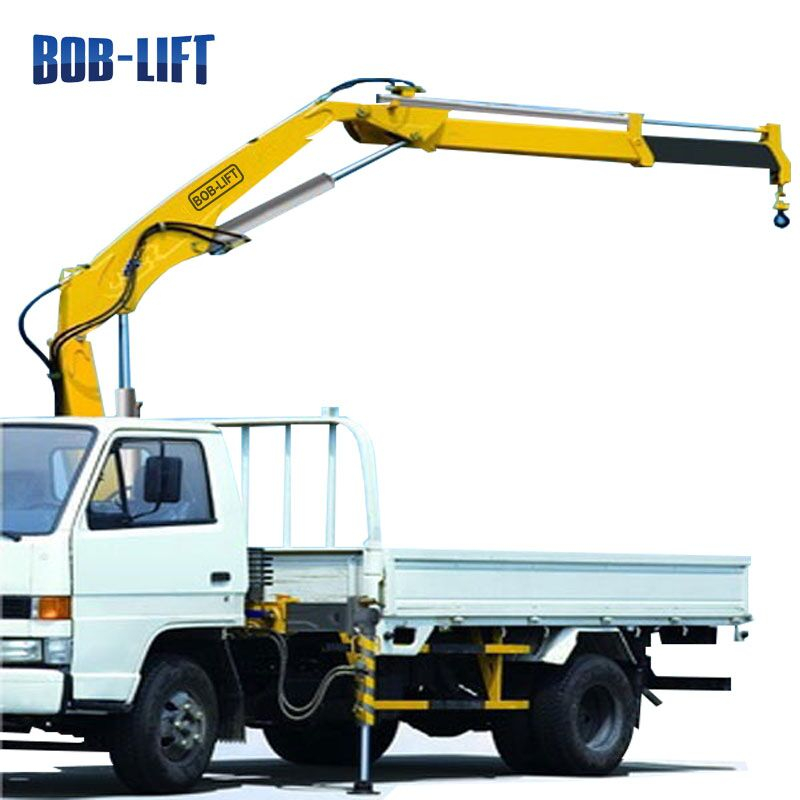

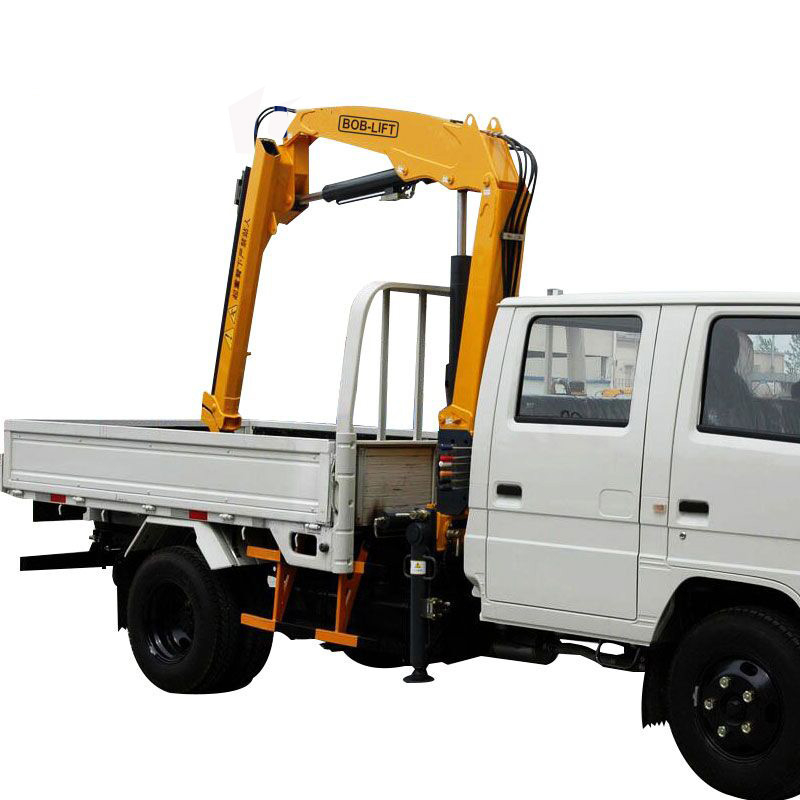

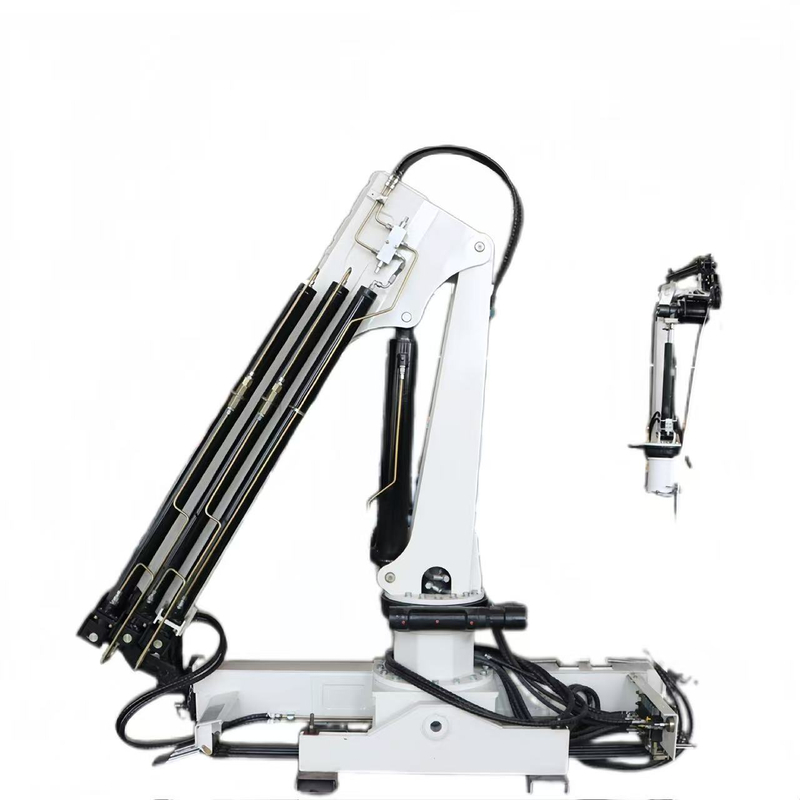

The SQ2ZA2 folds its boom into a compact package behind the cab: stowed, it is 1,920 mm wide and 1,796 mm high. It needs 650 mm of installation space behind the cab. It suits small trucks and pickups delivering building materials, gas cylinders and garden supplies, and service vehicles that lift pumps, engines and tools.
Rated capacity always depends on radius. At 4.1 m the SQ2ZA2 lifts 1,000 kg and at 5.1 m it lifts 750 kg, so check the weight of your heaviest regular load at the distance you need before you choose a tonnage.
Load at each radius
| 2.1 m |
2,000 kg |
| 4.1 m |
1,000 kg |
| 5.1 m |
750 kg |
Figures from the SQ2ZA2 load chart with the boom horizontal. Do not lift more than the chart shows at your working radius. Download the SQ2ZA2 load chart (PDF)
Mounting it on your truck
Your body builder mounts the crane on the chassis behind the cab, using these figures from the dimension drawing:
| Installation space behind the cab |
650 mm |
| Outrigger span |
1,870–3,020 mm |
| Width of the crane when stowed |
1,920 mm |
| Height of the crane when stowed |
1,796 mm |
| Hydraulic supply |
20 L/min at 20 MPa, about 9 kW |
| Oil tank |
25 L |
Send us your truck make, model and wheelbase, and we check that the chassis and power take-off suit the crane before you order. Download the SQ2ZA2 dimension drawing (PDF)
Warranty and service
BOB-LIFT covers the whole crane for 12 months. Common spare parts leave the factory within 48 hours, and our service team answers within 12 hours and can guide repairs by video. Cranes ship from Lianyungang, Qingdao or Shanghai.
All knuckle boom truck cranes · How to choose a knuckle boom crane
Optional attachments
- Hydraulic gripper opened and closed by its own cylinder to grab and release loads.
- Clamshell bucket for loading, unloading and light digging of waste, chippings and soil.
- Orange peel grab for scrap and bulk material.
- Timber grapple for logs and timber.
- Auger for tree-planting holes, utility poles, foundation piles and soil sampling.
Certification
The SQ2Z series holds a CE certificate of conformity under the EU Machinery Directive 2006/42/EC.
Choosing the right model
Need more than 2 t? The next class up is the SQ3.2ZA3 at 3.2 t. For lighter loads, the SQ1ZA3+1 at 1.6 t is the class below.
Before ordering, check that the truck's power take-off can deliver 20 L/min at 20 MPa. We recommend 9 kW of hydraulic power. Its self weight of 650 kg adds to the load on the truck, so allow for it in the payload.
